What size tree does it take 9000 lbs to move? (I realize it's going to vary with terrain)

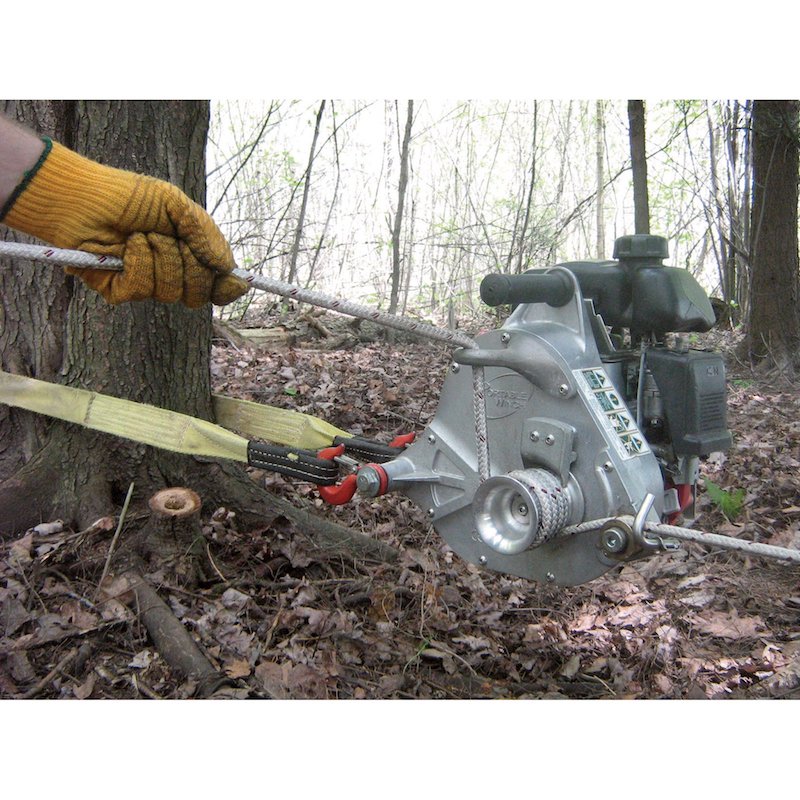

Skidding winch
- Thread starter Stomper
- Start date
- Views: 39589
4570Man
Super Star Member
- Joined
- Apr 7, 2015
- Messages
- 19,007
- Location
- Crossville, TN
- Tractor
- Kubota M59, Kubota L3800, Grasshopper 428D, Topkick dump truck, 3500 dump truck, 10 ton trailer, more lighter trailers.
It takes a lot of power to move them when they sink in the ground when they hit.
My 15000 pound winch struggled to break this one free from that hole. Edit that picture is misleading. There was a 40 foot long 25” butt diameter white oak there. I had to cut the smaller tree to get it out.
guitarman
Silver Member
- Joined
- Dec 15, 2015
- Messages
- 127
- Location
- Coarsegold, Ca
- Tractor
- Jinma 454// other equipment husqvarna rancher 61 chain saw & model 460 both with 24 " bar, 2 husq trimmer, greemworks 40volt trimmer and pole saw. 20 ton wood splitter, various welders metal saws and drill press
rating for winch shown is 9,000 lbs first wrap 4600 lbs last wrap, they also make a 10,000 lb pound pto winch. there are also companies that specialize in pto skidding winches.
Winch Manufacturers | ForestWinches.com
404 Not Found
these are pto skidding winches rated up to 14,000lbs but as has been mentioned they start getting pricey.
all drum type winches are rated at pulling power on first wrap.
Winch Manufacturers | ForestWinches.com
404 Not Found
these are pto skidding winches rated up to 14,000lbs but as has been mentioned they start getting pricey.
all drum type winches are rated at pulling power on first wrap.
guitarman
Silver Member
- Joined
- Dec 15, 2015
- Messages
- 127
- Location
- Coarsegold, Ca
- Tractor
- Jinma 454// other equipment husqvarna rancher 61 chain saw & model 460 both with 24 " bar, 2 husq trimmer, greemworks 40volt trimmer and pole saw. 20 ton wood splitter, various welders metal saws and drill press
rating for winch shown is 9,000 lbs first wrap 4600 lbs last wrap, they also make a 10,000 lb pound pto winch. there are also companies that specialize in pto skidding winches.
Winch Manufacturers | ForestWinches.com
Wallenstein Tractor 3 Point Bush Pilot Logging/Skidding Winches -- Iowa Farm Equipment
these are pto skidding winches rated up to 14,000lbs but as has been mentioned they start getting pricey.
all drum type winches are rated at pulling power on first wrap.
Winch Manufacturers | ForestWinches.com
Wallenstein Tractor 3 Point Bush Pilot Logging/Skidding Winches -- Iowa Farm Equipment
these are pto skidding winches rated up to 14,000lbs but as has been mentioned they start getting pricey.
all drum type winches are rated at pulling power on first wrap.
guitarman
Silver Member
- Joined
- Dec 15, 2015
- Messages
- 127
- Location
- Coarsegold, Ca
- Tractor
- Jinma 454// other equipment husqvarna rancher 61 chain saw & model 460 both with 24 " bar, 2 husq trimmer, greemworks 40volt trimmer and pole saw. 20 ton wood splitter, various welders metal saws and drill press
sorry for duplicate post
Sawyer Rob
Super Member
My skidding winch has a drum, and as I already stated before, it's rated 9,000 on the LAST wrap.
The problem with skidding is, getting the load started
Skidding up hill
Soft ground where the log digs in
Then there's times when the log is rubbing on a rock or you need to turn the log, it's takes a lot more pulling power to do ANY of these things...
SR
WranglerX
Super Member
Think you misunderstood my post, YOUR first post bough up the link to the electric winch TWICE when I though you wanted one link to electric and one link to the hydraulic....
Dale
I thought pto winches had different lb rating then electric winches, meaning on pto if winch it is rated 6000 lbs it would be the same on first wrap to the last wrap so all power rating is up to the tractor and cable.
guitarman
Silver Member
- Joined
- Dec 15, 2015
- Messages
- 127
- Location
- Coarsegold, Ca
- Tractor
- Jinma 454// other equipment husqvarna rancher 61 chain saw & model 460 both with 24 " bar, 2 husq trimmer, greemworks 40volt trimmer and pole saw. 20 ton wood splitter, various welders metal saws and drill press
must an FX85 or FX110 either one is a nice unit price for an FX85 starts at $3500 up $4000 thats why I mentioned the the ps654 series from pierce sales the Ps654 11Mk is rated at 12,500 lbs first wrap and you can shop around and find one brand new for around $1200.
Sawyer Rob
Super Member
As the wraps go on, it "can't" have the same rating...
Not all winches are rated the same, mine is as stated above, as per the manual that came with my winch.
SR
4570Man
Super Star Member
- Joined
- Apr 7, 2015
- Messages
- 19,007
- Location
- Crossville, TN
- Tractor
- Kubota M59, Kubota L3800, Grasshopper 428D, Topkick dump truck, 3500 dump truck, 10 ton trailer, more lighter trailers.
As the drum diameter increases the gear ratio decreases and the pull decreases.
goeduck
Super Star Member
Right. Each full turn of the drum retrieves more feet of cable as the drum fills, decreasing the effective pull force. Like a variable gear ratio.
guitarman
Silver Member
- Joined
- Dec 15, 2015
- Messages
- 127
- Location
- Coarsegold, Ca
- Tractor
- Jinma 454// other equipment husqvarna rancher 61 chain saw & model 460 both with 24 " bar, 2 husq trimmer, greemworks 40volt trimmer and pole saw. 20 ton wood splitter, various welders metal saws and drill press
Yep simple mechanics
guitarman
Silver Member
- Joined
- Dec 15, 2015
- Messages
- 127
- Location
- Coarsegold, Ca
- Tractor
- Jinma 454// other equipment husqvarna rancher 61 chain saw & model 460 both with 24 " bar, 2 husq trimmer, greemworks 40volt trimmer and pole saw. 20 ton wood splitter, various welders metal saws and drill press
Power and gear ratio
Yes pto winches are rated differently but whether it's a drum or spool as the cable wraps on the actual diameter increases which changes the ratio which calls for more power if the driving power is static the pulling power decreases, with a pro you have the option to use more throttle to compensate. On winches made for skidding from what I have found they are rated as per a full spool
Yes pto winches are rated differently but whether it's a drum or spool as the cable wraps on the actual diameter increases which changes the ratio which calls for more power if the driving power is static the pulling power decreases, with a pro you have the option to use more throttle to compensate. On winches made for skidding from what I have found they are rated as per a full spool
Oh that makes since even I can understand that, short and simple for people who suffer with ADD..............:thumbsup::teacher:
Another good explanation, I'm most likely the only one here that didn't get the wrap equation on pto winches. So would you say that with a 6k electric winch as wraps increase the power cant be increased so therefore you loose pulling power? But on a 6k pto winch as the wraps increase to maintain pulling power at 6k, increasing the tractor's rpm will maintain 6k pulling power or until cable breaks?
guitarman
Silver Member
- Joined
- Dec 15, 2015
- Messages
- 127
- Location
- Coarsegold, Ca
- Tractor
- Jinma 454// other equipment husqvarna rancher 61 chain saw & model 460 both with 24 " bar, 2 husq trimmer, greemworks 40volt trimmer and pole saw. 20 ton wood splitter, various welders metal saws and drill press
To john_mc I was posting on my phone and for some reason it wouldn't let delete the extra post
guitarman
Silver Member
- Joined
- Dec 15, 2015
- Messages
- 127
- Location
- Coarsegold, Ca
- Tractor
- Jinma 454// other equipment husqvarna rancher 61 chain saw & model 460 both with 24 " bar, 2 husq trimmer, greemworks 40volt trimmer and pole saw. 20 ton wood splitter, various welders metal saws and drill press
Here is a link that goes into depth explaining it all
EMCE | Every Winch a Winner
Physics
Power
As*stated power is expressed in kW (kilowatt). In physics Watt can also*be expressed in J/s (Joules/second). Joules can also be expressed in Nm (Newton metre), therefore Power can be expressed in Nm/sec.
This makes power more understandable, since we know the required*Nm (line pull x effective drum radius) to move the load and the required speed at which the load has to be moved. The higher the speed (at a given load), the more power we need.
The calculations behind this look as follows: P(kW) = F(N) x V(metres/min) / 1020 x 60** In which P = power in kW, F = Force (line pull) in Newton, V = Line speed in metres/min, 1020 is a constant and 60 is a translation from minutes into seconds (Nm/sec).
Torque
With the required amount of power (kW) determined, the amount of torque (Nm) involved in the application must be determined. Depending on the effective drum radius and the load the torque at gearbox and motor level can be calculated. The amount of torque at gearbox level is important to make sure a sufficiently strong gearbox is chosen, and at motor level to make sure the load can be actually moved.
The effective drum radius used in this calculation is the distance between the*centreline of the active rope layer and the centreline of the drum. For winches with only one layer of rope this is a constant factor. For winches with multiple layers the distance is a variable, and depends on the amount of rope wound on the drum. Please*see Fig. 3-2 for the influence of the number of rope layers on the effective drum diameter.
[https://emce]
a) Drum radius proper -*b) Effective drum radius with one layer of rope - c) Effective drum radius with four layers of rope.
Note:*The rope diameter (required for the above calculation) follows from the nominal winch load, the required safety factor and the type of rope selected.
EMCE | Every Winch a Winner
Physics
Power
As*stated power is expressed in kW (kilowatt). In physics Watt can also*be expressed in J/s (Joules/second). Joules can also be expressed in Nm (Newton metre), therefore Power can be expressed in Nm/sec.
This makes power more understandable, since we know the required*Nm (line pull x effective drum radius) to move the load and the required speed at which the load has to be moved. The higher the speed (at a given load), the more power we need.
The calculations behind this look as follows: P(kW) = F(N) x V(metres/min) / 1020 x 60** In which P = power in kW, F = Force (line pull) in Newton, V = Line speed in metres/min, 1020 is a constant and 60 is a translation from minutes into seconds (Nm/sec).
Torque
With the required amount of power (kW) determined, the amount of torque (Nm) involved in the application must be determined. Depending on the effective drum radius and the load the torque at gearbox and motor level can be calculated. The amount of torque at gearbox level is important to make sure a sufficiently strong gearbox is chosen, and at motor level to make sure the load can be actually moved.
The effective drum radius used in this calculation is the distance between the*centreline of the active rope layer and the centreline of the drum. For winches with only one layer of rope this is a constant factor. For winches with multiple layers the distance is a variable, and depends on the amount of rope wound on the drum. Please*see Fig. 3-2 for the influence of the number of rope layers on the effective drum diameter.
[https://emce]
a) Drum radius proper -*b) Effective drum radius with one layer of rope - c) Effective drum radius with four layers of rope.
Note:*The rope diameter (required for the above calculation) follows from the nominal winch load, the required safety factor and the type of rope selected.
CobyRupert
Super Member
So.....let’s say tractor has a constant (fixed) rpm input to winch.
This makes a constant reel rpm, and would be a constant cable speed, but as the effective reel diameter increases the cable speed increases.
This means more power is required from tractor.
While more tractor power is required, it’s still at same PTO speed, this mean the torque that is passing through winch’s clutch is increasing. Clutch limits the Torque passed to drum.
Clutch also limits the power TO the drum, when tractor’s PTO is operating at a fixed speed.
Power OUT of the drum (cable) is also fixed. (Because power in =power out, ignoring losses ) Thus, if the cable pulling Power stays constant, the torque (pulling Force) decreases as the pulling speed increases (as effect reel size increases).
That makes sense and as expected.
And confirms that the pulling rating (in lbs) is dependent on if it’s first cable turn on reel or last.
And has little to do with the rpm your running winch at.
This makes a constant reel rpm, and would be a constant cable speed, but as the effective reel diameter increases the cable speed increases.
This means more power is required from tractor.
While more tractor power is required, it’s still at same PTO speed, this mean the torque that is passing through winch’s clutch is increasing. Clutch limits the Torque passed to drum.
Clutch also limits the power TO the drum, when tractor’s PTO is operating at a fixed speed.
Power OUT of the drum (cable) is also fixed. (Because power in =power out, ignoring losses ) Thus, if the cable pulling Power stays constant, the torque (pulling Force) decreases as the pulling speed increases (as effect reel size increases).
That makes sense and as expected.
And confirms that the pulling rating (in lbs) is dependent on if it’s first cable turn on reel or last.
And has little to do with the rpm your running winch at.
Last edited:
Sawyer Rob
Super Member
You don't have to increase the tractors RPM, the tractors governor kicks in and "maintains" the RPM you have set.
The added fuel from the governor, increases the torque that the engine puts out, to compensate for the added load.
