Very smooth hydraulic. I'm still impressed with your homemade BH.



[BFreaky]

Thanks. It's all mechanical, without electromagnetic valves



[Gus Osmium]

Hi BFreaky,
I hope you feel great when you are using your backhoe. Inspirational project, thanks for sharing.

I have just bought a backhoe attachment, ex-Australian army, never used and stored inside in a machinery warehouse for 10 years. But it's configured for mounting on a skid steer and I need to fit it to the rear of my 65hp tractor. So I have to fabricate a subframe for a rigid connection to my chassis.

If I am reading your earliest posts correctly, you made your subframe from 15mm mild steel with M16 high tensile bolts? Is that correct? Was this adequate? If you were starting over, knowing what you know now - how would you do it?

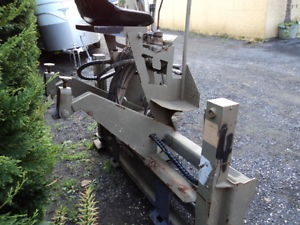

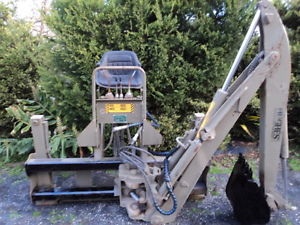

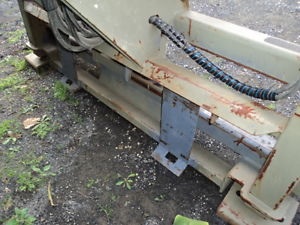

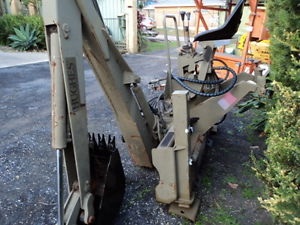

i've added some pics below, any advice you can offer is greatly appreciated,
Thanks, Gus



[BFreaky]

The chasis strenght depends on the weight of the BH. My backhoe weighs about 1.2 T . I've done some extreme testing pulling out concrete slabs, tree stumps etc and it is still flawless, so yes, for me 15 mm steel plates and M16 bolts do a good job. Try to find out the weight of your BH. It is also very important to make a frame that connects the front and back end of yout tractor. You most certainly don't wat to break you tractor in half...



[Gus Osmium]

Thanks BFreaky,
It has a reinforcing subframe from front to rear axle that is installed in association with the FEL.
Ive attached a couple of pics below showing how this subframe attaches to the rear axle.
My thinking was to attach a subframe to the same three bolts on each side, extending to the rear via a welded connection to the rear of the axle fitting to make a rigid lower connection to the backhoe
View attachment 437864
View attachment 437863
View attachment 437866
View attachment 437867



[Gus Osmium]

Backhoe mass is around 650kg, depending on the bucket.
I think the lower subframe is pretty straightforward, it's the connection at the top that gives me some uncertainty. Not sure what combination/profile/thickness of steel to use at the top.
Attached below are:
1. Some pics of the rear of my tractor with my flail mulcher/mower mounter on the TPL.
2. Two pics of the mounting arrangement of the "factory" backhoe from a unit at the dealer's yard (the last two pics).
I'd be grateful for any suggestions.
Thanks,
Gus
View attachment 437873
View attachment 437874
View attachment 437875
View attachment 437876
View attachment 437877
View attachment 437878
View attachment 437879
View attachment 437880



[Gus Osmium]

I found this pic that uses flat bar and SHS for the diagonal braces.
I could sort of adopt this configuration, but with only one hole at either end of the diagonals, and maybe two lengths of angle (90 x 90 x 8mm) welded together back to back for the upper horizontal arm?
View attachment 437888



[ericher69]

Hi BFreaky, I hope you feel great when you are using your backhoe. Inspirational project, thanks for sharing. I have just bought a backhoe attachment, ex-Australian army, never used and stored inside in a machinery warehouse for 10 years. But it's configured for mounting on a skid steer and I need to fit it to the rear of my 65hp tractor. So I have to fabricate a subframe for a rigid connection to my chassis. If I am reading your earliest posts correctly, you made your subframe from 15mm mild steel with M16 high tensile bolts? Is that correct? Was this adequate? If you were starting over, knowing what you know now - how would you do it? i've added some pics below, any advice you can offer is greatly appreciated, Thanks, Gus <img src="http://www.tractorbynet.com/forums/files/build-yourself/437214-tractor-backhoe-homemade-image-jpg"/><img src="http://www.tractorbynet.com/forums/files/build-yourself/437215-tractor-backhoe-homemade-image-jpg"/><img src="http://www.tractorbynet.com/forums/files/build-yourself/437216-tractor-backhoe-homemade-image-jpg"/><img src="http://www.tractorbynet.com/forums/files/build-yourself/437217-tractor-backhoe-homemade-image-jpg"/>

Start a new thread instead of hijacking bfreaky's build

It will allow everyone to follow along on your project

Sent from my iPhone 5s 64Gb using TractorByNet



[Gus Osmium]

Eric,
I'm not trying to hijack anything, I'm trying to ask one of the only two blokes I've found who can speak from their own direct experience. If Bfreaky was still in construction phase you would have a fair point, but his build was complete back in June and there is no ongoing activity on this thread.
Bfreaky, I'll leave this to you to determine, I certainly had not intended to distract from your brilliant project.
Angus



[ericher69]

Eric, I'm not trying to hijack anything, I'm trying to ask one of the only two blokes I've found who can speak from their own direct experience. If Bfreaky was still in construction phase you would have a fair point, but his build was complete back in June and there is no ongoing activity on this thread. Bfreaky, I'll leave this to you to determine, I certainly had not intended to distract from your brilliant project. Angus

Angus not trying to be rude; I apologize if it came across this way.

Just saying that you could still ask BFreaky the question in a new thread as TBN members would like to follow along including me.

Maybe DM BFreaky and have him reply to your new thread?

Just a suggestion

Thanks

Sent from my iPhone 5s 64Gb using TractorByNet



[ericher69]

Eric, I'm not trying to hijack anything, I'm trying to ask one of the only two blokes I've found who can speak from their own direct experience. If Bfreaky was still in construction phase you would have a fair point, but his build was complete back in June and there is no ongoing activity on this thread. Bfreaky, I'll leave this to you to determine, I certainly had not intended to distract from your brilliant project. Angus

Angus not trying to be rude; I apologize if it came across this way.

Just saying that you could still ask BFreaky the question in a new thread as TBN members would like to follow along including me.

Maybe DM BFreaky and have him reply to your new thread?

Just a suggestion

Thanks

Sent from my iPhone 5s 64Gb using TractorByNet



[beetle bug 64]

Yes; I've finished the swing cylinders, mounted them in place and tested the swing motion. It works great. Btw, as far as I'm concerned, this is the most complicated part of the machine and it took a loot of thought and drawing.
Hydraulic thumb is also finished...

]

Hi BFreaky, how did you weld the trunnion union onto the cylinder, by avoiding that the welding retract the cylinder diameter?

I would like to make the same cylinder for a wood splitter, but I'm afraid to retract the cylinder after having welded. Preventing me from screwing the head.

I love your job onto this backhoe.

Congratulation



[BFreaky]

You have to remove all the rubber seals from the cylinder because they will melt, screw the "head" in place but not too tight and then first make tack welds on opposite sides. After that weld it around i one movement. When you finish leave the cylinder to cool down slowly, do not cool it with water because your welds will crack



[beetle bug 64]

Thank you, I will try as soon as I can.



[BFreaky]

Here's a great example of how a hydraulic thumb can make a huuuge difference when you stumble on a pile of garbage like this one.
I picked it all up, no sweat



[Kyle_in_Tex]

Good job. How have you been? Are you married yet?

What is your next project?



[BFreaky]

Yes, I married few weeks ago.
I'm fine, thank you. How are you?
Next project...new model of snow/dozer blade. Pieces are already cut



[Green Power]

Congrats on getting Married, any major problems with the Backhoe?



[KubotainNH]

Nice, looking forward to seeing the new build. Oh yeah, congrats on the married part.
