Curved steering rod on CK30?

[RedRocker]

another



[RedRocker]

with the brackets



[KiotiJohn]

I guess I can't quite picture it if the filter is inside the pan because it doesn't look like the pan could accommodate that long filter. You say it goes PAST the filter, so it has to be completely covered right? How do you get all that filter in that shallow pan?
thanks, John



[RedRocker]

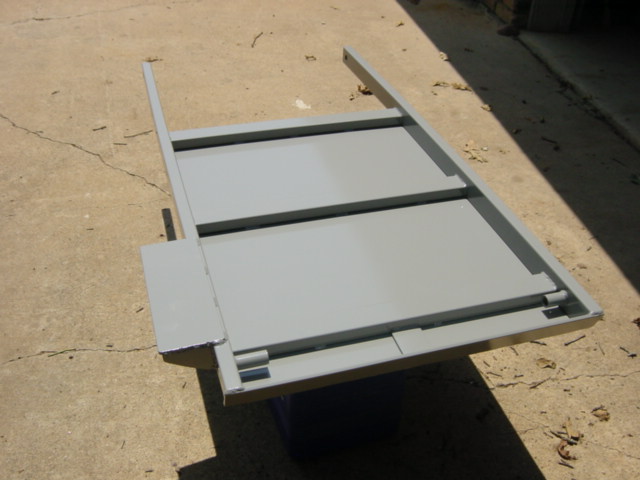

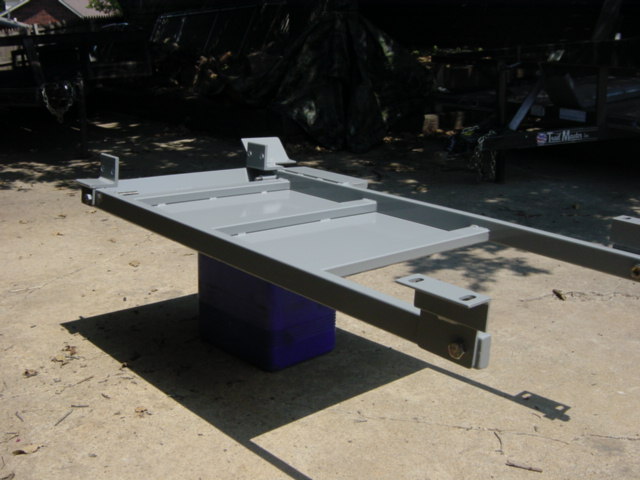

Here's a better shot of it.



[KiotiJohn]

</font><font color="blue" class="small">( Here's a better shot of it. )</font>
Now that's it!

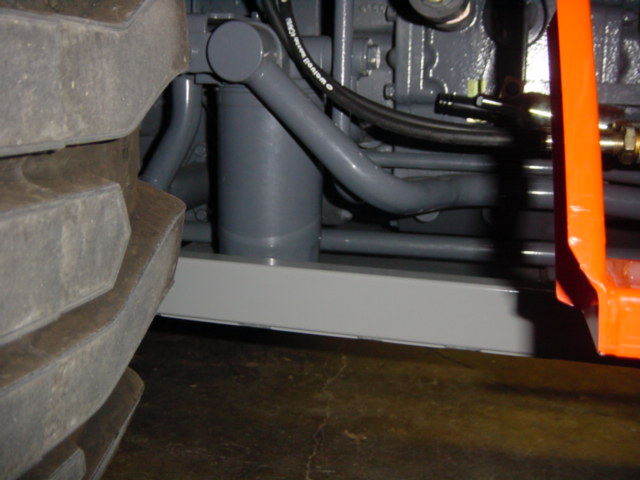

I see now that the whole thing hangs lower than I thought it was. Great protection. I suppose you made it easy to take off for maintenance? That's great protection for sure.
John



[mrutkaus]

Wow. Beautiful.

Now...if only i had the exact measurements...

Nice work.

Mike



[RedRocker]

I'll see what I can throw together measurement wise to get you started.



[Highbeam]

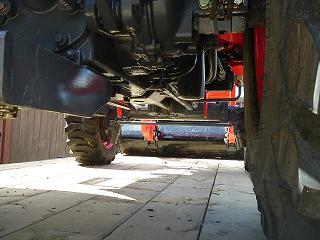

Hot dog, love the skidplate, here's a picture of the naked underbelly.

The plate could be extended to the front and curved up and attached to the frame to make a full belly pan. This would protect that low slung tie rod too.
