Hello,

I've stripped down my Iseki TX2140 about a week ago to change the clutch. Mostly all back together, however I'm clearly going senile as I can't remember what linkage goes where on the throttle, doh.

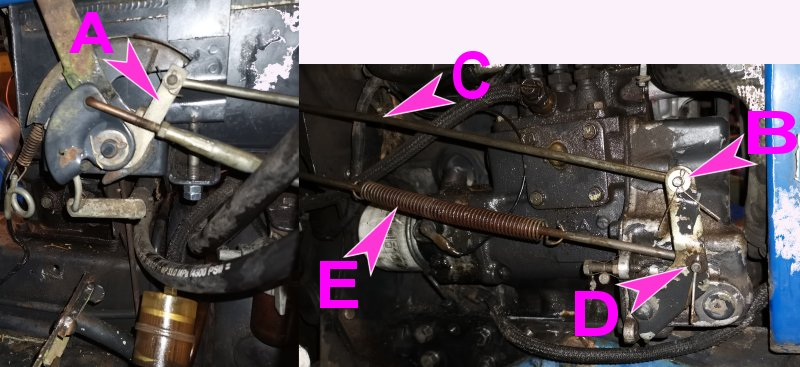

I was unable to get the whole rods and levers as one photo as the FEL bits are in the way, hence two photos stitched together.

On my image below which I've discovered is connected up wrong.

The bottom linkage with the spring (E) should be in hole B on the right hand arm.

With regards to rod C (which should be in hole D on the right hand arm), looking at the hand throttle lever assembly, does the arm marked A go upwards as shown, approximately at the 1 o'clock position, or should it dropped down to the 5 or 6 o'clock (depending on how it rests) position?

Thanks in advance :)


Attachments

  • linkages-1.jpg
    252.9 KB · Views: 92
   / Throttle linkages on TX2140 #2
I think I replied to this on facebook, would that be correct
