: Oroville, California - breaching spillways and evacuations.



[dickfoster]

You have to wonder if the higher ups might be holding back information to keep a full out pandemic situation from occuring. Thus, a smooth exodus.

Here on the gulf coast, they "over hype" hurricanes to get people to leave early.

I think they are. That big hole in the main spillway is a really bad deal on what is really just a big pile of clay soil. If you know how clay dams have to work then you know it's a serious deal.
The reason the spillway gave way is because the clay core essentially dried out and shrank over the course of the recent drought. From the footage I've seen, the spillway was built with unreinforced concrete. When the earth dried out what you had was a crust of unreinforced concrete which simply caved in when they starting putting a lot of heavy water over it.
Now you have the opposite problem where they are now pouring water into the clay core though that spillway failure which has the effect of simply dissolving the core and making failure of the entire dam a real possibility. Imagine making up a ball of clay and dropping into a bucket of water.
Now you're talking about a 900' deep lake being cut loose to run down the Feather River and flooding out everything down to and including Sacramento. The entire Sacramento valley area down to Stockton and beyond has many many levies that aren't in the best of shape. They have been fretting about for those for some years already. Some of these levies are starting to show their age and are being a problem with the recent water deluge. Now add all of that water from lake Oroville on top of that and you've got yourself some real problems. I'm not trying to be a fear monger just tell it the way it is. I think they are running on luck more than anything else right now. With a bit more luck they will make it through the spring runoff when that record snowpack melts when they will be about to effect some real repairs to that spillway. That would be to skin the entire main spillway with reinforced concrete and to also skin the emergency spillway to prevent erosion of the dam below it should it ever need to be used again.



[hawkeye08]

I think they are. That big hole in the main spillway is a really bad deal on what is really just a big pile of clay soil. If you know how clay dams have to work then you know it's a serious deal.
The reason the spillway gave way is because the clay core essentially dried out and shrank over the course of the recent drought. From the footage I've seen, the spillway was built with unreinforced concrete. When the earth dried out what you had was a crust of unreinforced concrete which simply caved in when they starting putting a lot of heavy water over it.
Now you have the opposite problem where they are now pouring water into the clay core though that spillway failure which has the effect of simply dissolving the core and making failure of the entire dam a real possibility. Imagine making up a ball of clay and dropping into a bucket of water.
Now you're talking about a 900' deep lake being cut loose to run down the Feather River and flooding out everything down to and including Sacramento. The entire Sacramento valley area down to Stockton and beyond has many many levies that aren't in the best of shape. They have been fretting about for those for some years already. Some of these levies are starting to show their age and are being a problem with the recent water deluge. Now add all of that water from lake Oroville on top of that and you've got yourself some real problems. I'm not trying to be a fear monger just tell it the way it is. I think they are running on luck more than anything else right now. With a bit more luck they will make it through the spring runoff when that record snowpack melts when they will be about to effect some real repairs to that spillway. That would be to skin the entire main spillway with reinforced concrete and to also skin the emergency spillway to prevent erosion of the dam below it should it ever need to be used again.

Not sure what you mean by unreinforced concrete, but looking at the photos on the other website, there is a bunch of rebar in it... are you referring to something other??



[Egon]

Lots of pictures with reinforcing showing.



[houstonscott]

Oroville Dam: Feds and state officials ignored warnings 12 years ago

They knew.



[dickfoster]

Not sure what you mean by unreinforced concrete, but looking at the photos on the other website, there is a bunch of rebar in it... are you referring to something other??

I couldn't see rebar in the footage I saw. Maybe in the sides but not the bottom If it was there then good so I guess it wasn't thick enough to take the weight unsupported by the subsoil. Whatever, it's a serious problem now.



[aczlan]

I think they are. That big hole in the main spillway is a really bad deal on what is really just a big pile of clay soil. If you know how clay dams have to work then you know it's a serious deal.
The reason the spillway gave way is because the clay core essentially dried out and shrank over the course of the recent drought. From the footage I've seen, the spillway was built with unreinforced concrete. When the earth dried out what you had was a crust of unreinforced concrete which simply caved in when they starting putting a lot of heavy water over it.
Now you have the opposite problem where they are now pouring water into the clay core though that spillway failure which has the effect of simply dissolving the core and making failure of the entire dam a real possibility. Imagine making up a ball of clay and dropping into a bucket of water.
Now you're talking about a 900' deep lake being cut loose to run down the Feather River and flooding out everything down to and including Sacramento. The entire Sacramento valley area down to Stockton and beyond has many many levies that aren't in the best of shape. They have been fretting about for those for some years already. Some of these levies are starting to show their age and are being a problem with the recent water deluge. Now add all of that water from lake Oroville on top of that and you've got yourself some real problems. I'm not trying to be a fear monger just tell it the way it is. I think they are running on luck more than anything else right now. With a bit more luck they will make it through the spring runoff when that record snowpack melts when they will be about to effect some real repairs to that spillway. That would be to skin the entire main spillway with reinforced concrete and to also skin the emergency spillway to prevent erosion of the dam below it should it ever need to be used again.

Please, before fearmongering, read this whole thread (I posted several pictures showing the concrete with rebar in it), then look at the linked thread at Metabunk (Oroville Dam Spillway Failure | Metabunk).
The upper part of the spillway is carved into a rock outcropping, the spillway and emergency spillway are built on top of a rock outcropping.
Worst case, they lose the emergency spillway and 30 feet of the lake dumps downstream. While that would be a big problem, the rest of the dam is not going anywhere.
Let me repost a picture showing where things sit:

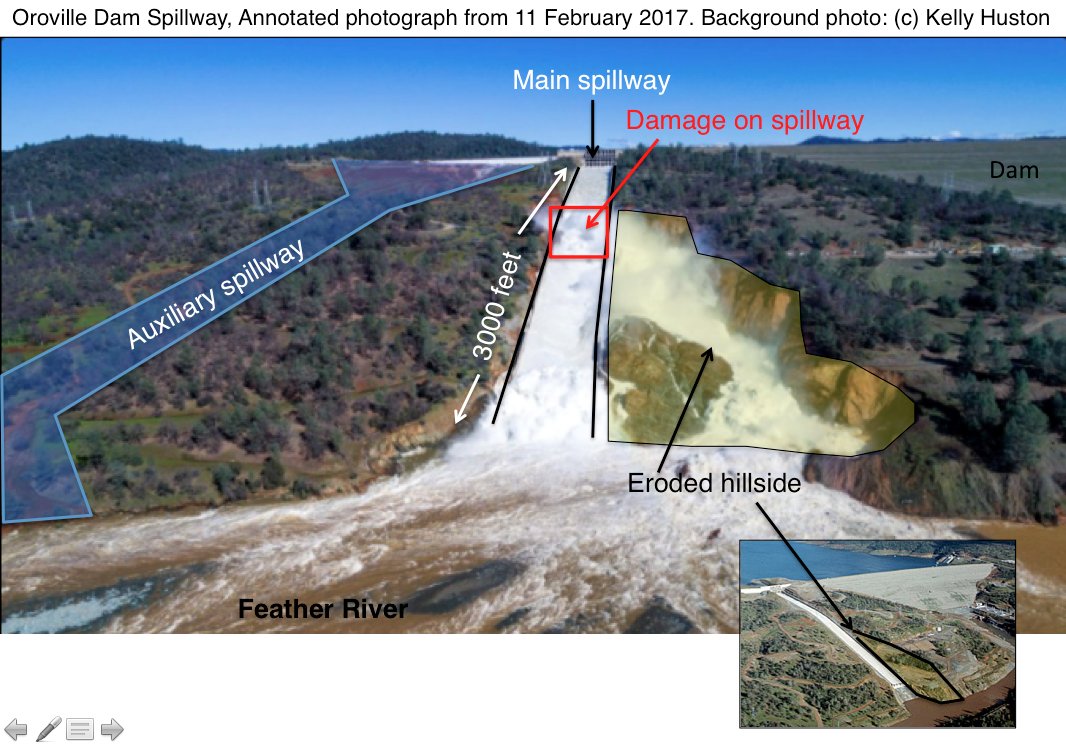

Picture of the whole area with some good markings of where everything is to give some perspective:
View attachment 498656
Source: Twitter

Even if both spillways blow out, there is still a large shoulder with rock underneath that it has to get around before it can eat into the dam itself.
In this picture, you can see the rock lining the side of the main spillway:

Source: Oroville Dam Spillway Failure | Page 7 | Metabunk
The evacuation was in case the emergency spillway blew out as they were getting undercutting that was getting close to the base of the emergency spillway.

Aaron Z



[dickfoster]

Please, before fearmongering, read this whole thread (I posted several pictures showing the concrete with rebar in it), then look at the linked thread at Metabunk (Oroville Dam Spillway Failure | Metabunk).
The upper part of the spillway is carved into a rock outcropping, the spillway and emergency spillway are built on top of a rock outcropping.
Worst case, they lose the emergency spillway and 30 feet of the lake dumps downstream. While that would be a big problem, the rest of the dam is not going anywhere.
Let me repost a picture showing where things sit:

Even if both spillways blow out, there is still a large shoulder with rock underneath that it has to get around before it can eat into the dam itself.
In this picture, you can see the rock lining the side of the main spillway:
View attachment 498668
Source: Oroville Dam Spillway Failure | Page 7 | Metabunk
The evacuation was in case the emergency spillway blew out as they were getting undercutting that was getting close to the base of the emergency spillway.

Aaron Z

You can stand down there if feel safe but I'll stay up here on the hill high above it all.
I know how earthen works dams are supposed to work and what too much water does to clay. It's clay and not rocks that is supposed to hold the water back. Rocks are permeable unless it's solid rock and it's clay that makes earthwork dams hold water. All that red stuff you're seeing is clay. The rock rubble or rip-rap is just there to protect the earthen structure from physical wave action. In the end, only time will tell.

Here is a cross section of the Oroville Dam which is one of the highest embankment dams in the world. Until 1980 or so it was the highest in the world. The so called impervious core bit that is supposed to hold the water back is simply compacted clay.



[aczlan]

You can stand down there if feel safe but I'll stay up here on the hill high above it all.
I know how earthen works dams are supposed to work and what too much water does to clay. It's clay and not rocks that is supposed to hold the water back. Rocks are permeable unless it's solid rock and it's clay that makes earthwork dams hold water. All that red stuff you're seeing is clay. The rock rubble or rip-rap is just there to protect the earthen structure from physical wave action. In the end, only time will tell.
View attachment 498670

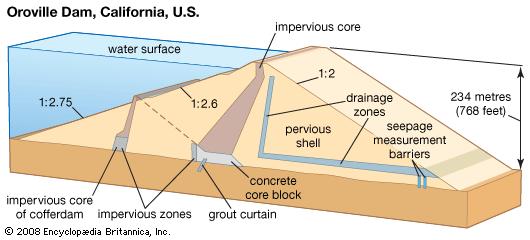

Here is a cross section of the Oroville Dam which is one of the highest embankment dams in the world. Until 1980 or so it was the highest in the world. The so called impervious core bit that is supposed to hold the water back is simply compacted clay.

The spillway is NEXT to the dam, NOT ON the dam. The area that the spillways are in is a shoulder of rock. That is why they built it there
If you look at the main spillway, it has scoured out the clay and the reclaimed tailings that they used for fill and the area is down to rock (other than the corners of the bottom end of the upper spillway which are still eroding uphill a little), this can be seen by comparing the reddish flume coming off the main spillway for the first day or two to the white flume coming off now.
See Oroville Dam Spillway Failure | Page 3 | Metabunk for comparison pictures.
The emergency spillway is 20 feet lower than the top of the actual dam, it is not likely that there will be enough water to fill the lake to where it over tops the emergency spillway by 20 feet.

Aaron Z



[EddieWalker]

For all you guys who keep repeating that the spillway is rock, why do you think that will stop the water?

Rock is one of the worse materials for holding water in a pond because of all the cracks. Rushing water over it will break it apart in time. Yosemite is an excellent example of what water does to solid rock.

What is protecting the solid rock from the rushing water? and how long will it remain solid rock?



[dickfoster]

The spillway is NEXT to the dam, NOT ON the dam. The area that the spillways are in is a shoulder of rock. That is why they built it there
If you look at the main spillway, it has scoured out the clay and the reclaimed tailings that they used for fill and the area is down to rock (other than the corners of the bottom end of the upper spillway which are still eroding uphill a little), this can be seen by comparing the reddish flume coming off the main spillway for the first day or two to the white flume coming off now.
See Oroville Dam Spillway Failure | Page 3 | Metabunk for comparison pictures.
The emergency spillway is 20 feet lower than the top of the actual dam, it is not likely that there will be enough water to fill the lake to where it over tops the emergency spillway by 20 feet.

Aaron Z

Wrong, the spillway is on and is a part of the dam. That concrete bit to the right of the spillway is just the concrete bit for the power house etc. Earthen dam flanks that part of the dam on each side.
It's right down the road from me and I've been there. Maybe 65 miles away if that far. Make that 63 miles, I just looked it up.
Of course I might not be able to get there now due to road closures due to mud slides and stuff so I'll sit tight up here at 3600'. There's been a lot of that kinda thing going on lately. A huge mudslide even closed I 80 in both directions just last Friday. A few thousand cars somehow managed to find the little road I live on called Scotts Flat road Friday night in a futile attempt to avoid the backup on CA20 which is a two lane road that winds through the mountains. I wonder how they liked the unpaved portion of Scott Valley road further down the hill. LOL Them city folks were sure bound and determined to go skiing. At 2AM they were still goin at it. At least CalTrans would not let the big rigs attempt the CA20 detour due to snow and ice.



[houstonscott]

Here's the nightmare scenario at Oroville Dam that officials are fighting to prevent - LA Times

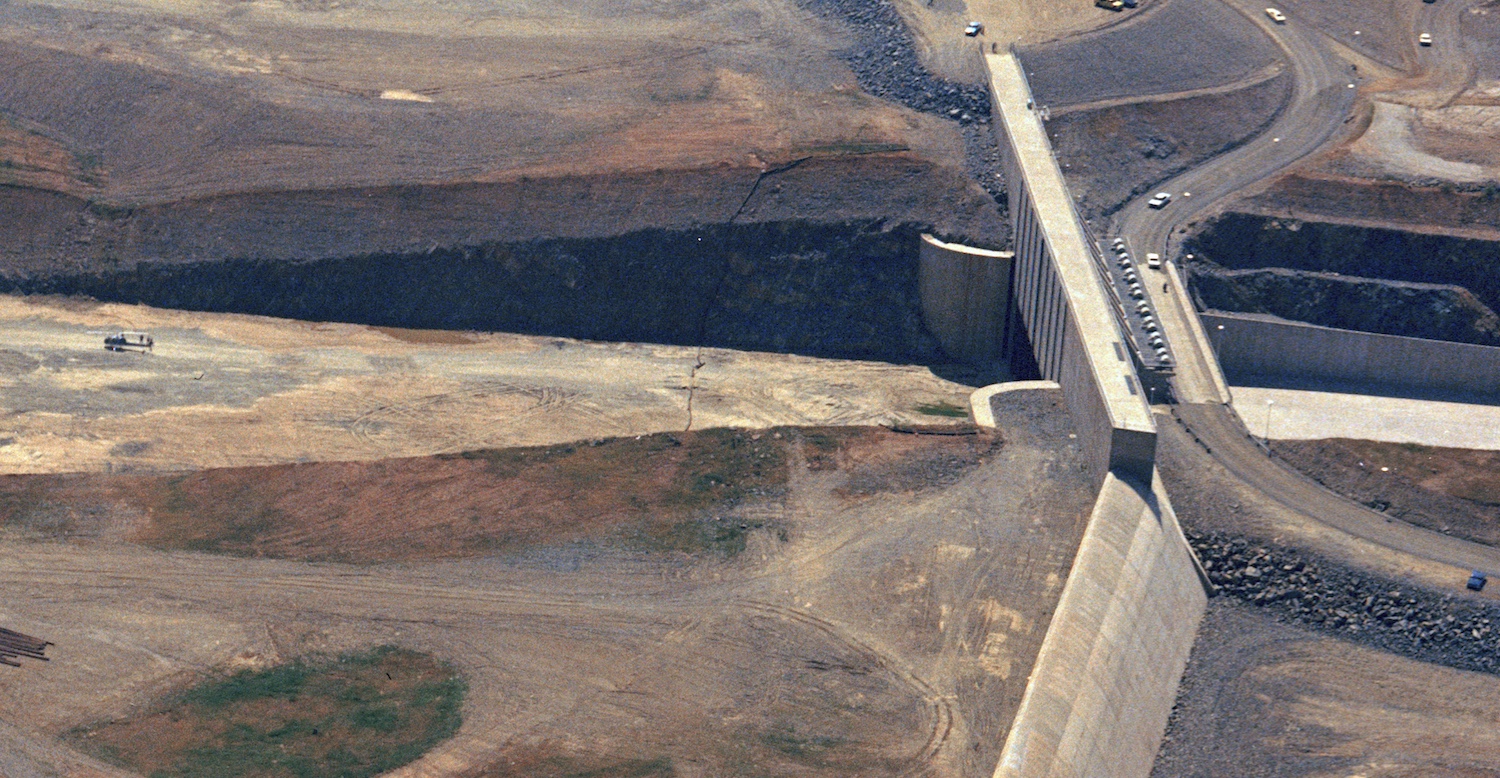

Check out far left side of emergency spillway, looks like drawing.



[TomSeller]

Oroville Dam: Feds and state officials ignored warnings 12 years ago

They knew.

A lot of small government people like to bring up things like this at times like this, yet when the funds were requested "back when", they don't support the tax money being spent.



[TomSeller]

For all you guys who keep repeating that the spillway is rock, why do you think that will stop the water?

Rock is one of the worse materials for holding water in a pond because of all the cracks. Rushing water over it will break it apart in time. Yosemite is an excellent example of what water does to solid rock.

What is protecting the solid rock from the rushing water? and how long will it remain solid rock?

Is it dirt or rock under the top of a waterfall? How long have the world's waterfalls been there?



[EddieWalker]

Is it dirt or rock under the top of a waterfall? How long have the world's waterfalls been there?

Is that a trick question? They have been there as long as the rock holding the water back lasts? Or maybe until all the rock under the water fall erodes to the point that the rock holding the water back up on the mountain fails?

Or did you mean that with all the rock debris at the bottom of every waterfall that I've been to, they are continually eroding and all that rushing water hitting the rock below is constantly eroding that rock away.

Or are you saying that the dam is like a waterfall and the water will just keep going over the dam and falling forever?



[aczlan]

Wrong, the spillway is on and is a part of the dam. That concrete bit to the right of the spillway is just the concrete bit for the power house etc. Earthen dam flanks that part of the dam on each side.

Ummm, the power house is way down the hill at the bottom of the dam (it appears that it is even on the other side of the Feather river). Nowhere near the spillway.
Here is a graphic showing where things are:

Source: Compromised Oroville Dam Auxiliary Spillway Leads To Mass Evacuation: SFist
The main spillway is cut into the rock as seen in the picture I posted earlier.

For all you guys who keep repeating that the spillway is rock, why do you think that will stop the water?
Rock is one of the worse materials for holding water in a pond because of all the cracks. Rushing water over it will break it apart in time. Yosemite is an excellent example of what water does to solid rock.
What is protecting the solid rock from the rushing water? and how long will it remain solid rock?

There is clay and fill dirt/riprap/concrete (depending on where you are talking) on the lake side keeping the water out of the (mostly solid) rock. What the rock downhill from the spillway does is resist erosion. Yes, it can be worn away, no it wont hold as well as good concrete, but it will hold a lot better than dirt does.
If you follow the link in my last post, you can see where the water coming down the main spillway has cleaned the dirt out and the water coming down the hill is white (no mud/clay unlike the bottom of the emergency spillway).

Aaron Z



[bcp]

Another map and photo showing where things are.

Bruce



[Raspy]

This dam is 'old' but is completely sound, HOWEVER the dam can only hold back water so long as the water remains below its top. The reason the emergency spillway exists is because there is a larger threat from a dam being overtopped and then failing. The emergency spillway is being used for the first time ever and it is evident that no maintenance or updating to make sure it too was 'sound' was ever done. Additionally, the long period of drought, would have killed off trees, grasses and other stabilizing growth and left the earth weakened along the emergency spillway. Also, the main spillway, which has a gaping hole, thus allowing water to undermine it and erode the area adjacent to the main spillway is also not sound. It seems that no money at all had been spent to study/evaluate/strengthen the main spillway ever. It's only purpose in life is to guide water to the river, but in your time of need, it fails as a result of water that it should have been designed to withstand.

I will never understand how CA does things.

Well, not quite.

According to a report on PBS today, there was a study done on the Oroville Dam that found the auxiliary spillway was unsound. Unsound for the very reasons we've now seen. A dirt hillside that could undermine and fail. The feds are in charge of the dam, not CA. The Feds decided that it wasn't a problem, based on what I don't know, and moved on. Now it is a problem.



[buckeyefarmer]

Don't confuse people with more pictures and facts, they haven't looked at the ones already posted. Lol
