What do those symbols mean?

[SylvainG]

Just curious. They are on the dash, but not documented. Probably not connected either.



[MoKelly]

Just curious. They are on the dash, but not documented. Probably not connected either.

The one with the circle and squiggly line, I believe, is for engine coolant temperature.

I don’t know about the box symbol.

MoKelly



[bcp]

Push when driving through water.

Push when driving over pallets.



Bruce



[ptsg]

On the service manual, those lights are not documented on the dasb board part but are on the electric diagram.

The left one is a Water warning light, probably level or temp warning would be my guess.

The right on is Hydraulic warning light. Maybe a restriction indicator for the hydraulic filter or something. Again, just my guess.

The dash is most likely used in different models where those lights are functional.



[MoKelly]

The one with the circle and squiggly line, I believe, is for engine coolant temperature.

I don’t know about the box symbol.

MoKelly

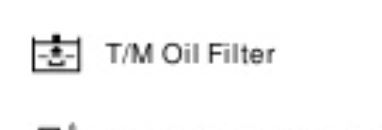

I went to the manual. It looks like my transmission and hydro filter symbol.

MoKelly



[SylvainG]

Thanks



[/pine]

Is it a diesel?...do you recognize all the other typical indicators usually on a dash like for "Glo Plugs" and "Battery"...?



[user.69169]

One of them is for the Ejection Seat like 007 had in de Aston Martin.

Not sure which one.
Good luck



[Jstpssng]

One of them is for the Ejection Seat like 007 had in de Aston Martin.

Not sure which one.
Good luck

Another drink just got spewed across my screen. :thumbsup: :laughing:



[Hay Dude]

One tells the old lady to have dinner ready, the other is to tell her to have a hot bath ready for you when you get home.
