vintage john deere electrical question

/ vintage john deere electrical question #1
J

jpurvis

New member
Joined
Aug 20, 2009
Messages
3
Does anyone have a wiring diagram for a model 520 john deere?

/ vintage john deere electrical question
  • Thread Starter
#3
thanks for the info

/ vintage john deere electrical question #4

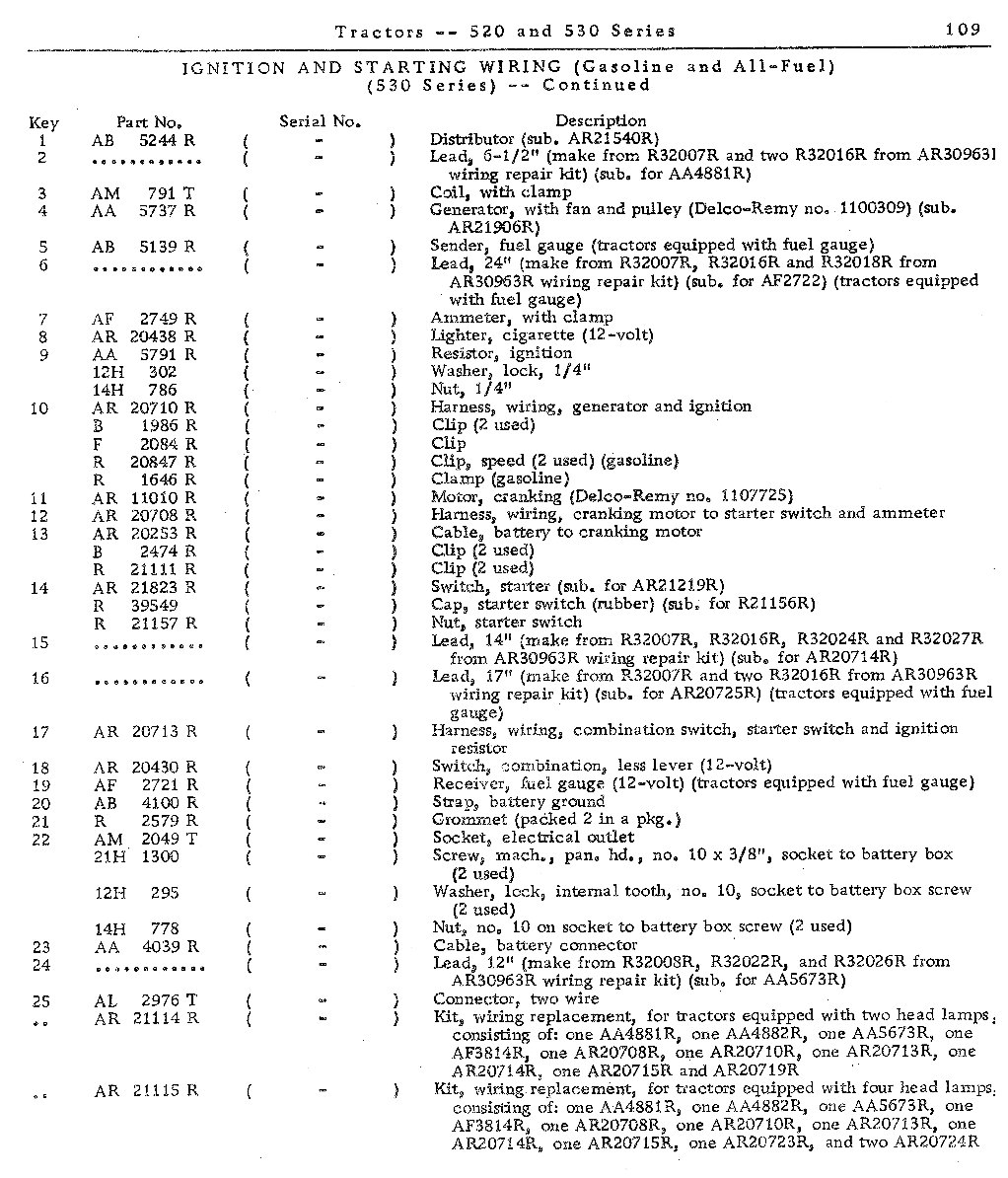

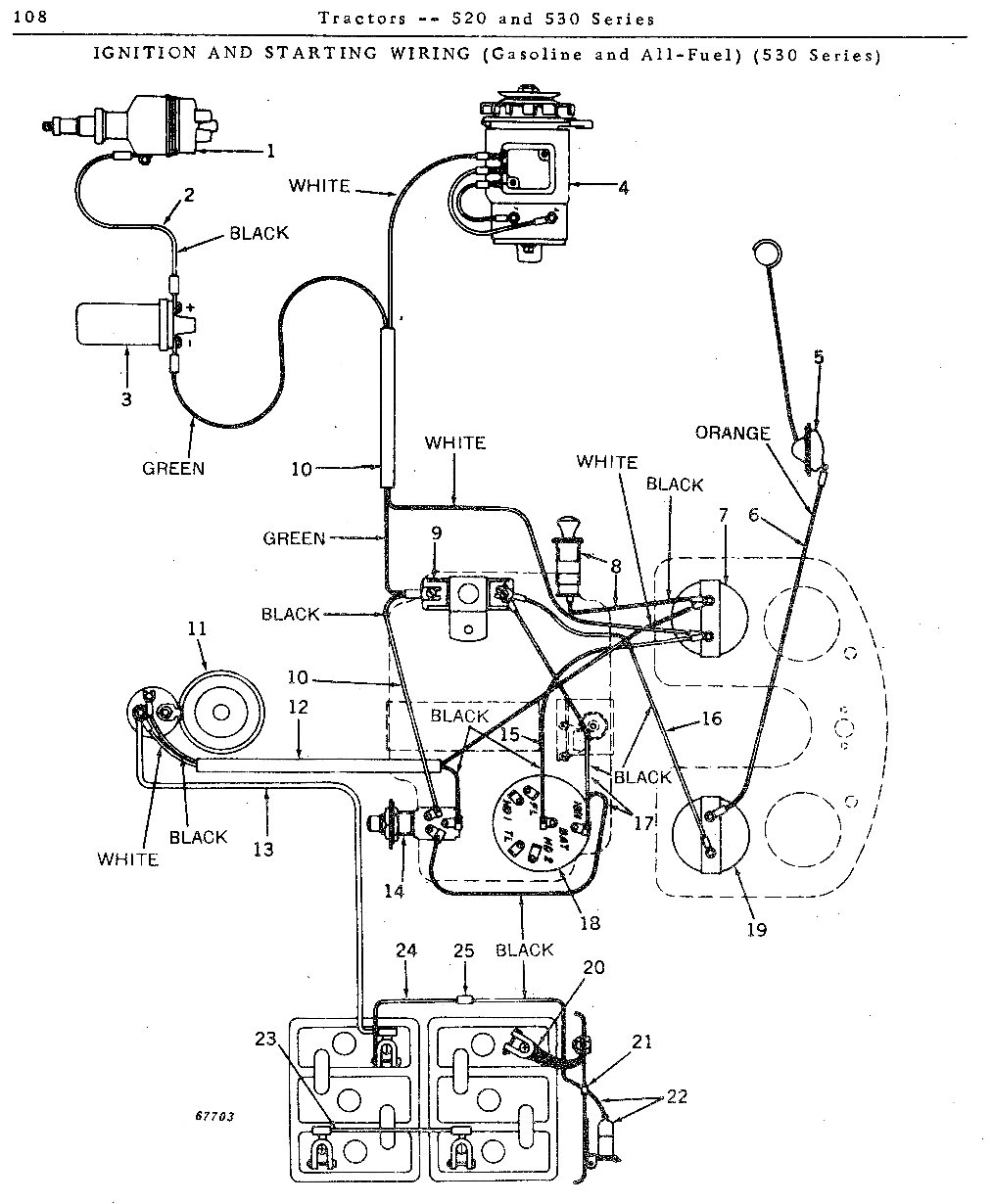

This is what I've got....


Tim


Attachments

  • 520 1.jpg
    520 1.jpg
    189.9 KB · Views: 1,732
  • 520 2.jpg
    520 2.jpg
    321.4 KB · Views: 949
