New Holland TC27D Wiring Diagrams

[LH Ranger]

Anyone got a workshop manual for a New Holland TC27D tractor? I am trying to understand the glow plug wiring on our 2004 model.....and struggling. Desperate to look at proper wiring diagrams. Thanks



[Anakist]

TC27D doesn't come up for some reason, but partspring kinda has electrical diagrams.

Not proper ones wiring diagrams, but they have diagrams of what wiring is where.

New Holland TC25D Electrical System

Partspring Online Part Store

www.partspring.com

Might have to see if you can buy a copy of the workshop manual to get the proper electrical diagrams.

James



[LH Ranger]

TC27D doesn't come up for some reason, but partspring kinda has electrical diagrams.

Not proper ones wiring diagrams, but they have diagrams of what wiring is where.

New Holland TC25D Electrical System

Partspring Online Part Store

www.partspring.com

Might have to see if you can buy a copy of the workshop manual to get the proper electrical diagrams.

James

Thanks James. I know. It seems strange that TC27D doesn't seem to come up anywhere online



[WM75Guy]

My owner's manual for the TC40DA has the wiring diagrams at the back of Section 3. Don't know if your manual would have the same.

NEW HOLLand TC27D Tractor Operators Manual

NEW HOLLAND TC27D TRACTOR OPERATORS MANUAL FOR MODELS WITH CAB TC27D 9X3 TRANSMISSION TC27D HYDROSTATIC TRANSMISSION WITHOUT CAB TC27D 9X3 TRANSMISSION TC27D HYDROSTATIC TRANSMISSION This manual has been developed to assist you in understanding how to operate and maintain your machine. It...

www.emanualonline.com



[skramer360]

My TC30 Operators manual also has the wiring diagram.



[thclimer]

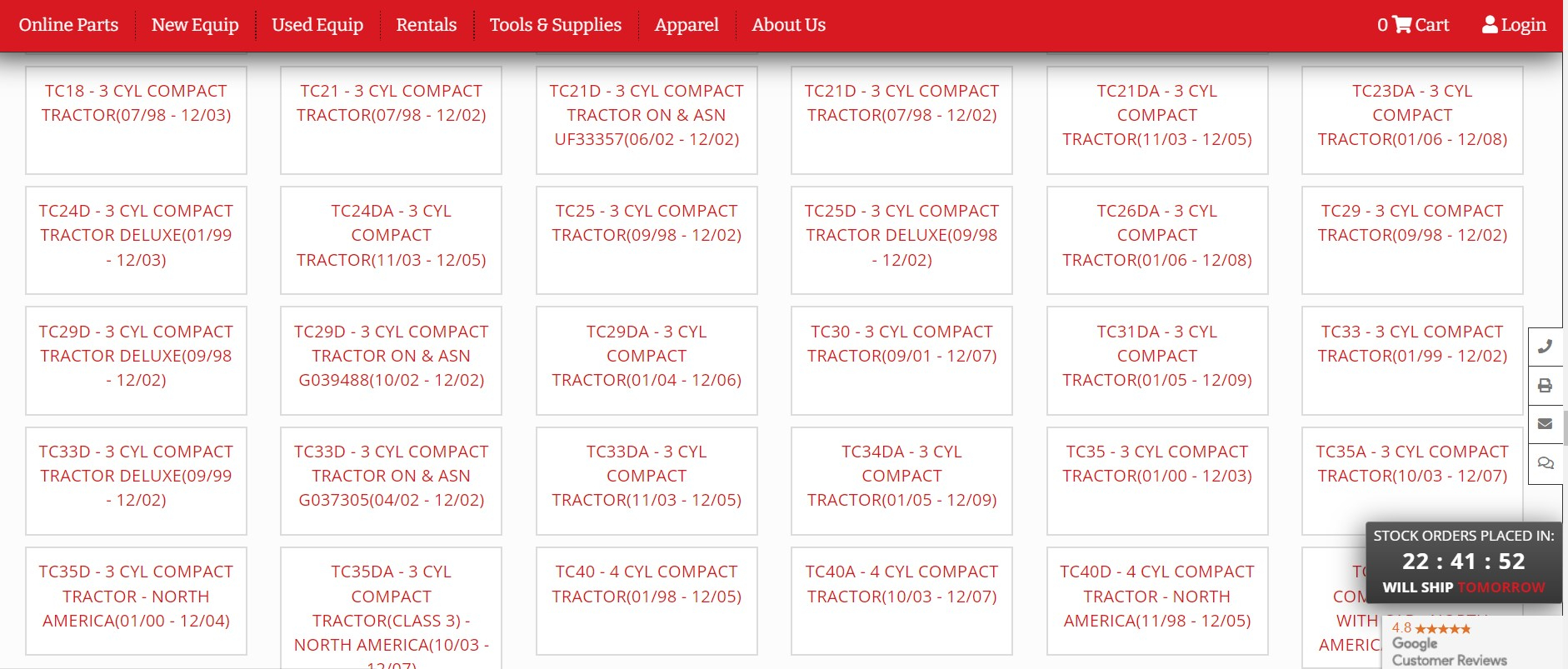

interestingly the model TC27D doesn't show up on the Messick Website, wonder if it was sold outside of the US:

I wonder how similar a diagram for a TC25D or TC33D would be?



[ruffdog]

I thought the TC27D, TC29D, and TC33D were the same tractor except for HP.

edit...my parts book has the 25, 29, and 33 models.



[WM75Guy]

I thought the TC27D, TC29D, and TC33D were the same tractor except for HP.

edit...my parts book has the 25, 29, and 33 models.

I won't be surprised. My owners manual is for the TC35DA, TC40DA, and the TC45DA. Same tractor, different HP too.



[nyone]

Pick a diagram and a component then see if the diagram matches what you see. Wire color or wire number.



[TC27D]

Anyone got a workshop manual for a New Holland TC27D tractor? I am trying to understand the glow plug wiring on our 2004 model.....and struggling. Desperate to look at proper wiring diagrams. Thanks

I have a TC27D manual - nothing in it apart from fuse box layout if that's any good to you. I have had a quick look, there was something online ages ago that I use to use, think it might have been through a CNH parts list, and it had wiring diagrams - can't seem to find it but will keep looking for you. You are right about the TC27D - ever other model listed bar the aul' "27". What are you trying to wire/trace?
