Anyone have a source of wiring diagram for ten year old JD 2520 ? Don’t want to go into details but it has to do with the starting system. Paid dealer over two grand a couple months ago and only got a temporary fix. I live on a one dealer island so have no other option. I’m good at troubleshooting but it’s impossible to diagnose electronic relays without a diagram.
JD 2520 WIRING
- Thread starter Switch
- Start date
- Views: 2966
-
- Tags
- john deere 2520
Wagtail
Super Star Member
- Joined
- Jan 15, 2013
- Messages
- 12,913
- Location
- St Helens, Tasmania, Australia
- Tractor
- JD 4105 / JD Z355E (48" deck)
G'day Mate and welcome to TBN from Downunder (even though you've been a Member for quite a while).
I have no idea what 'island' you're referring to (as I live on an island) but, if it is a JD Dealership, then all you need to do is request the particular diagrams from the Service Department and they'll print them off for you. It's what my JD Dealership would, and has, done for me. Plus they have provided a mechanic to discuss the problem.
Enjoy the site.
I have no idea what 'island' you're referring to (as I live on an island) but, if it is a JD Dealership, then all you need to do is request the particular diagrams from the Service Department and they'll print them off for you. It's what my JD Dealership would, and has, done for me. Plus they have provided a mechanic to discuss the problem.
Enjoy the site.
WranglerX
Super Member
Might be worth the investment.......
Tx Jim
New Member
Tech manual 1004 is for a rowcrop tractor built from '68-'72
Might be worth the investment.......
Tx Jim
New Member

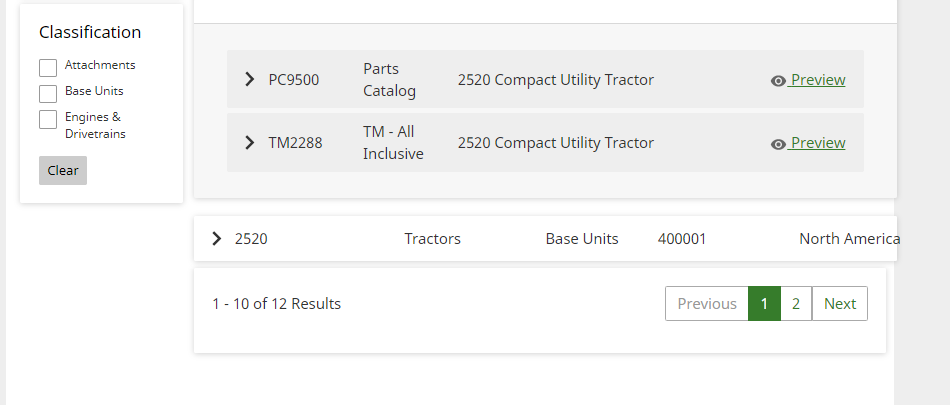

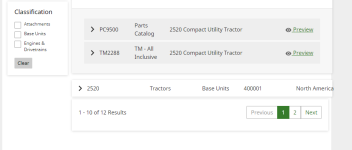

'06-'12 2520 CUT tech manual is TM2288 Search for Equipment Publications - Technical Information Store
