Ford 6.7L Powerstroke Diesel cut-away photos

[sparc]

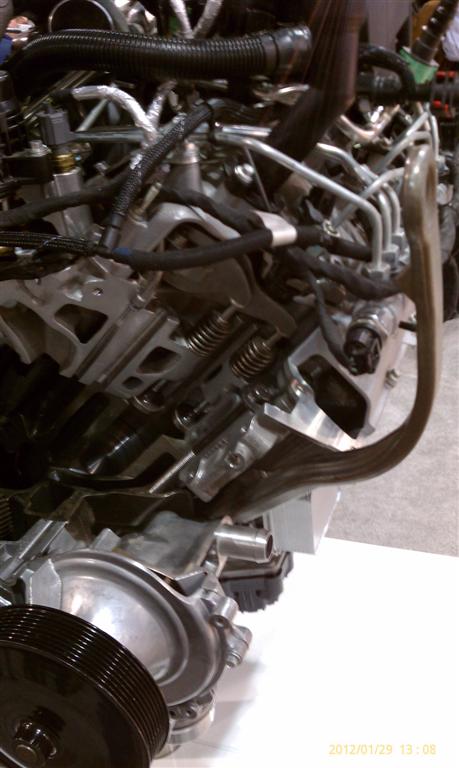

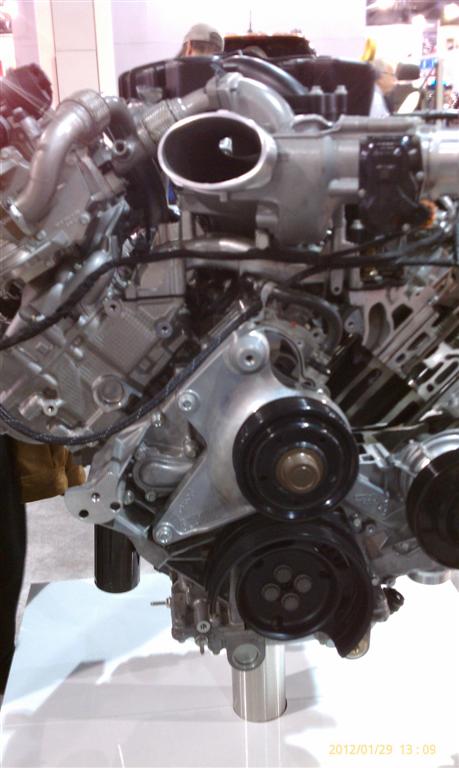

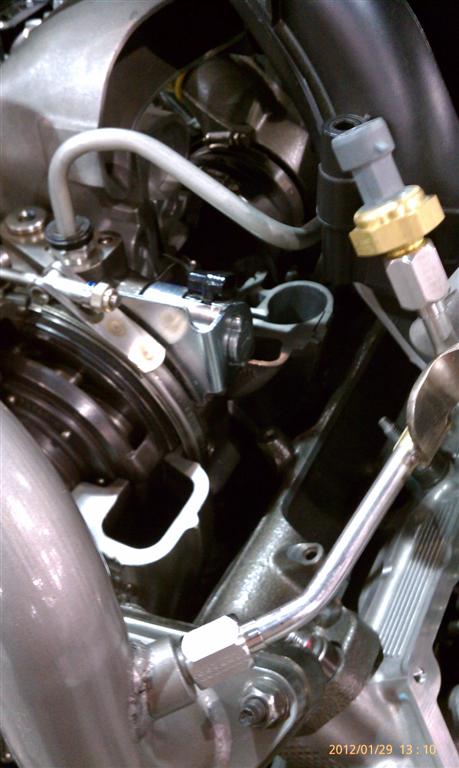

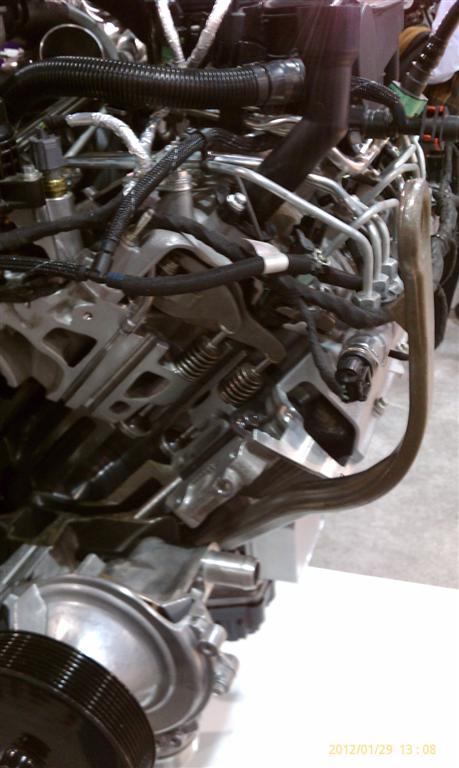

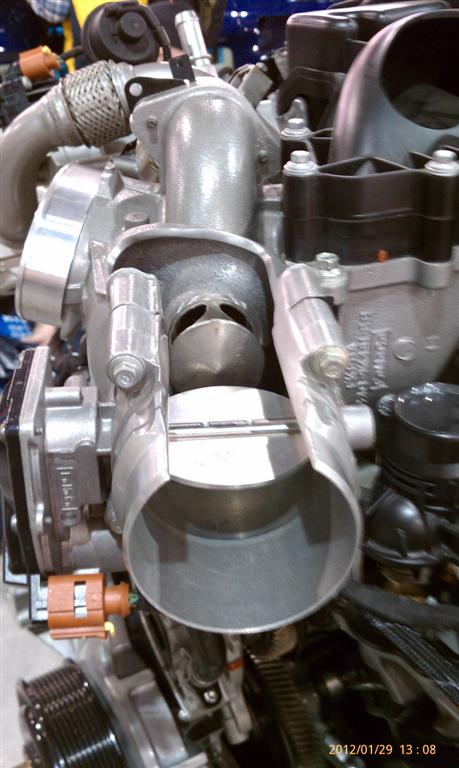

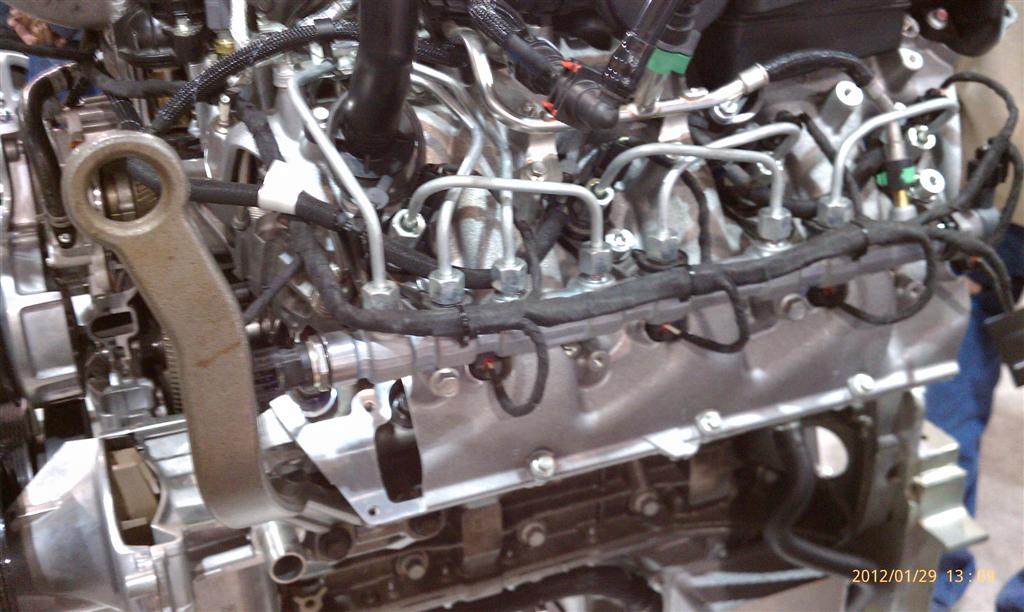

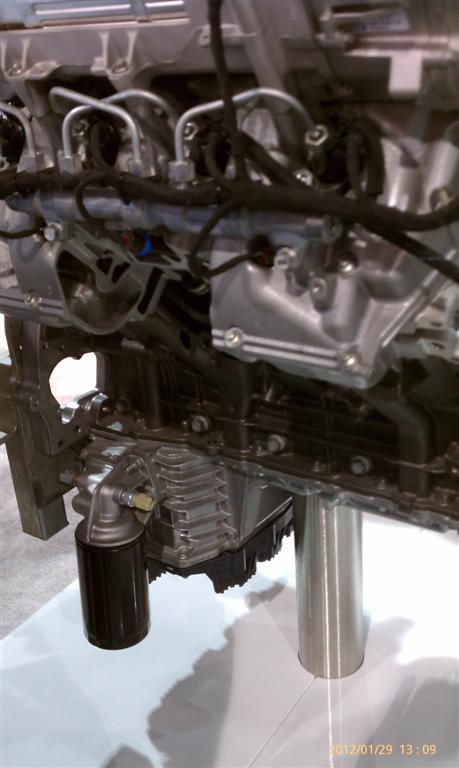

I was at the Philly Auto Show today and grabbed these cut away shots of the new 6.7L diesel. I figured these are things I might never get to see unless there was reason to tear down the motor so I thought it would be nice to take a few photos.

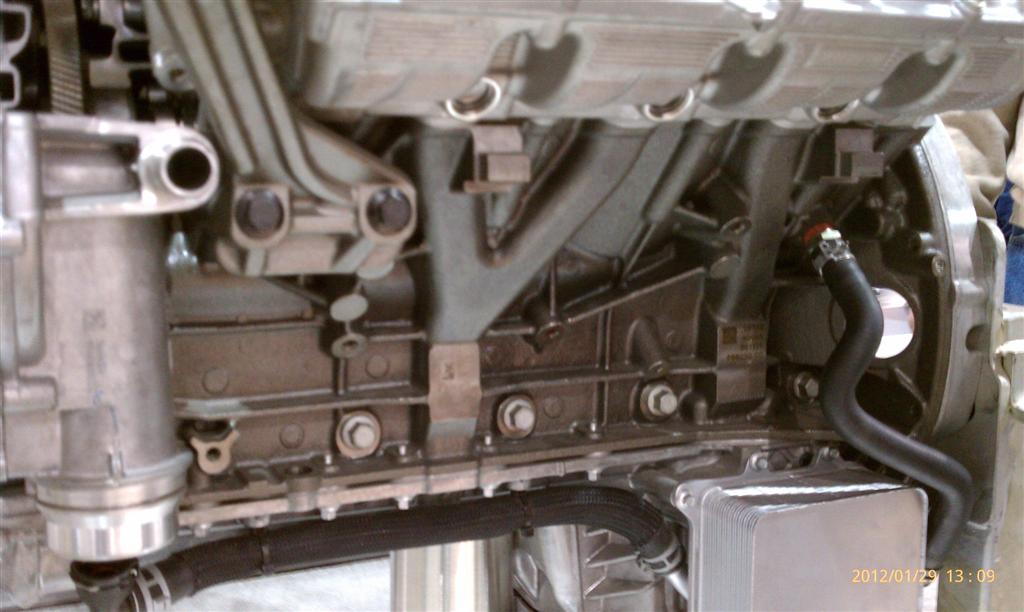

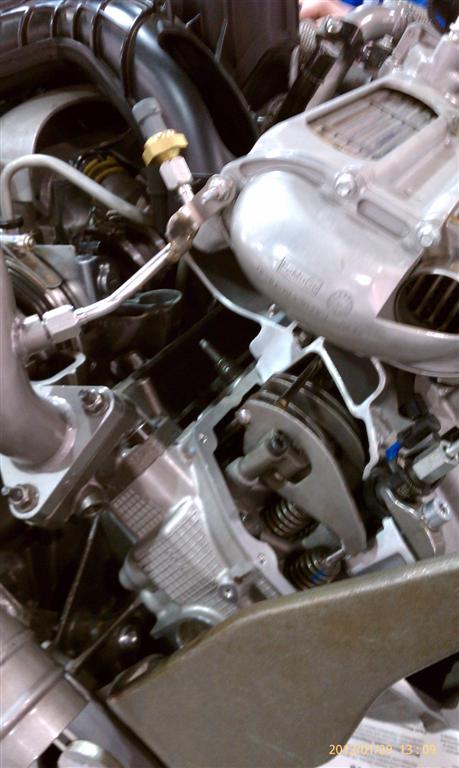

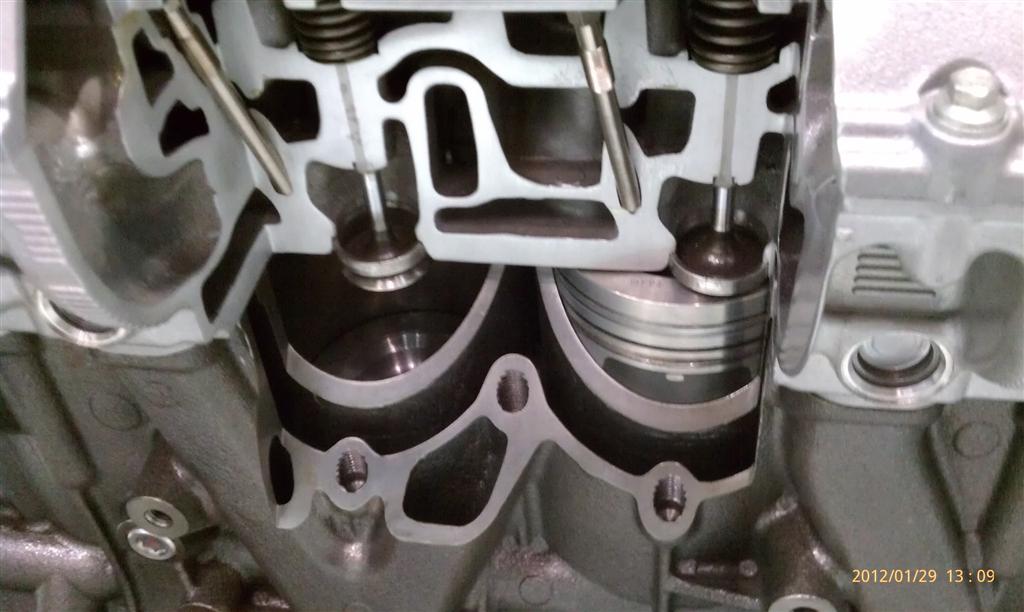

I noticed there are 6 head bolts per cylinder and in the one shot you can see what to me appear to be the cross bolts on the main bearing caps.
There was no cut away to the lower half of the block so you couldn't see the crankshaft or the main bearings or the bottom of the cylinder walls. But nothing about this motor looks like a gas block turned into a diesel as someone mentioned a few days ago in another thread.

Sorry but they are only cell phone quality pics.



[Marcellin]

Sure wouldn't want to have to change a head gasket on this engine. I think I'll stick to Cummins for a while.
Thank's for the pictures. I've been wondering what this engine looked like. I am satisfied but not reassured!
Regards.



[PoorMansCat]

The Ford dealers are getting to see lots of the internals of these engines..



[Red Horse]

The Ford dealers are getting to see lots of the internals of these engines..

Really? We are not talking 6.0 here right?



[Dmace]

Really? We are not talking 6.0 here right?

Really! Only instead of blowing head gaskets they're losing the fuel pump and blowing up completely.
