(Resolved) Branson 2400 diff lock pedal assembly

   / (Resolved) Branson 2400 diff lock pedal assembly #1

kw00

New member
Joined
Jul 24, 2021
Messages
18
Tractor
Branson 2400

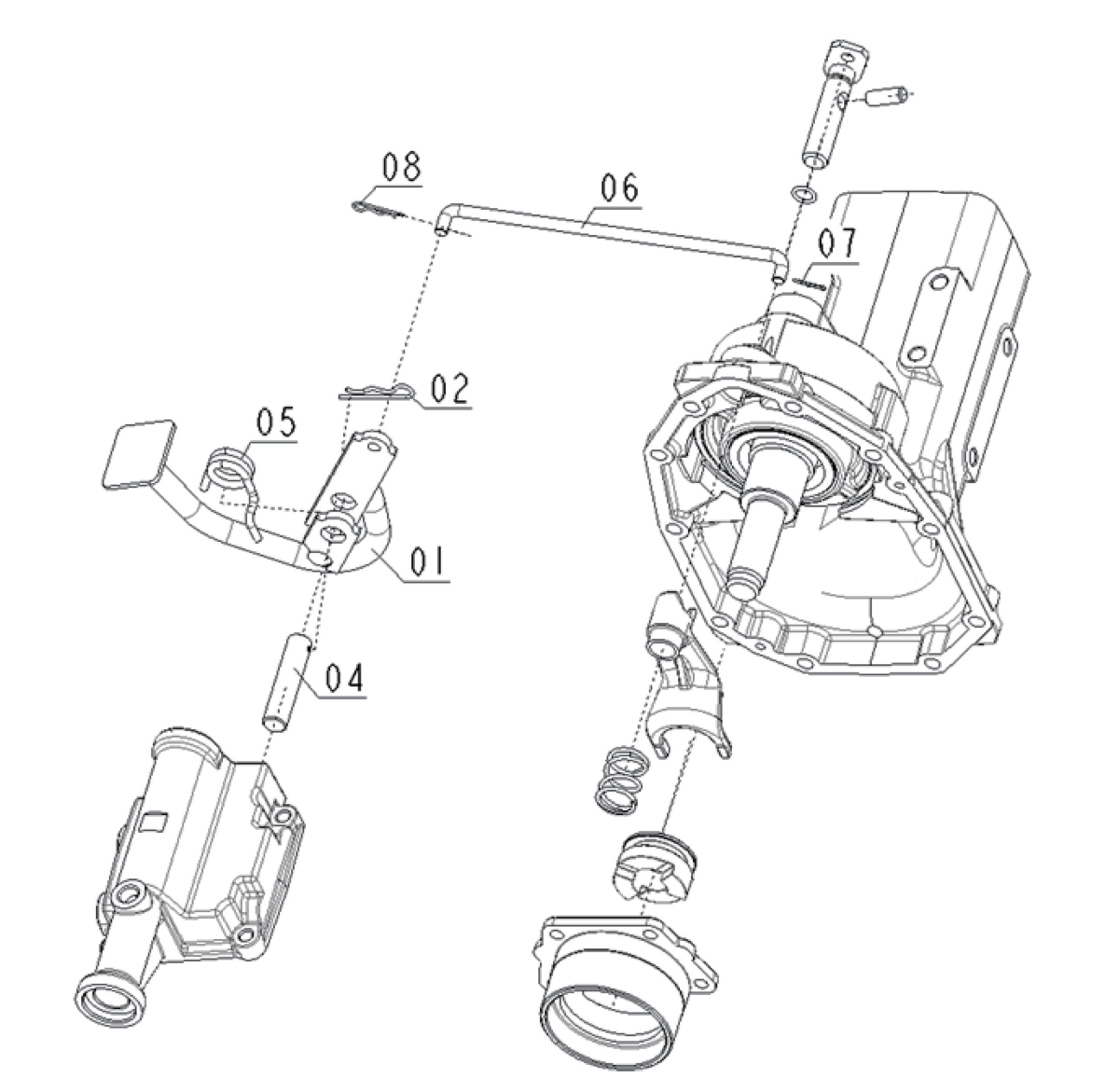

Broke this tractor down to replace a broken gear in the manual gearbox. Unfortunately I didn't take many photos since the manual appeared to have photos at every step. Oops... the photos showing the differential lock pedal connections are of a 2510, and I can't seem to make it match up. The rod is straight and I can't get a straight path between the pedal hole and the diff lock actuator. The pedal is a couple of inches too far in. The parts drawings are the correct model but perhaps too abstract to help. Does anyone have photos of this area of the tractor?


   / (Resolved) Branson 2400 diff lock pedal assembly
  • Thread Starter
#2
Never mind! After further work I figured out the rod is slightly angled. I figured if I posted it might solve itself.
