L47 extra cables

[Notforhire]

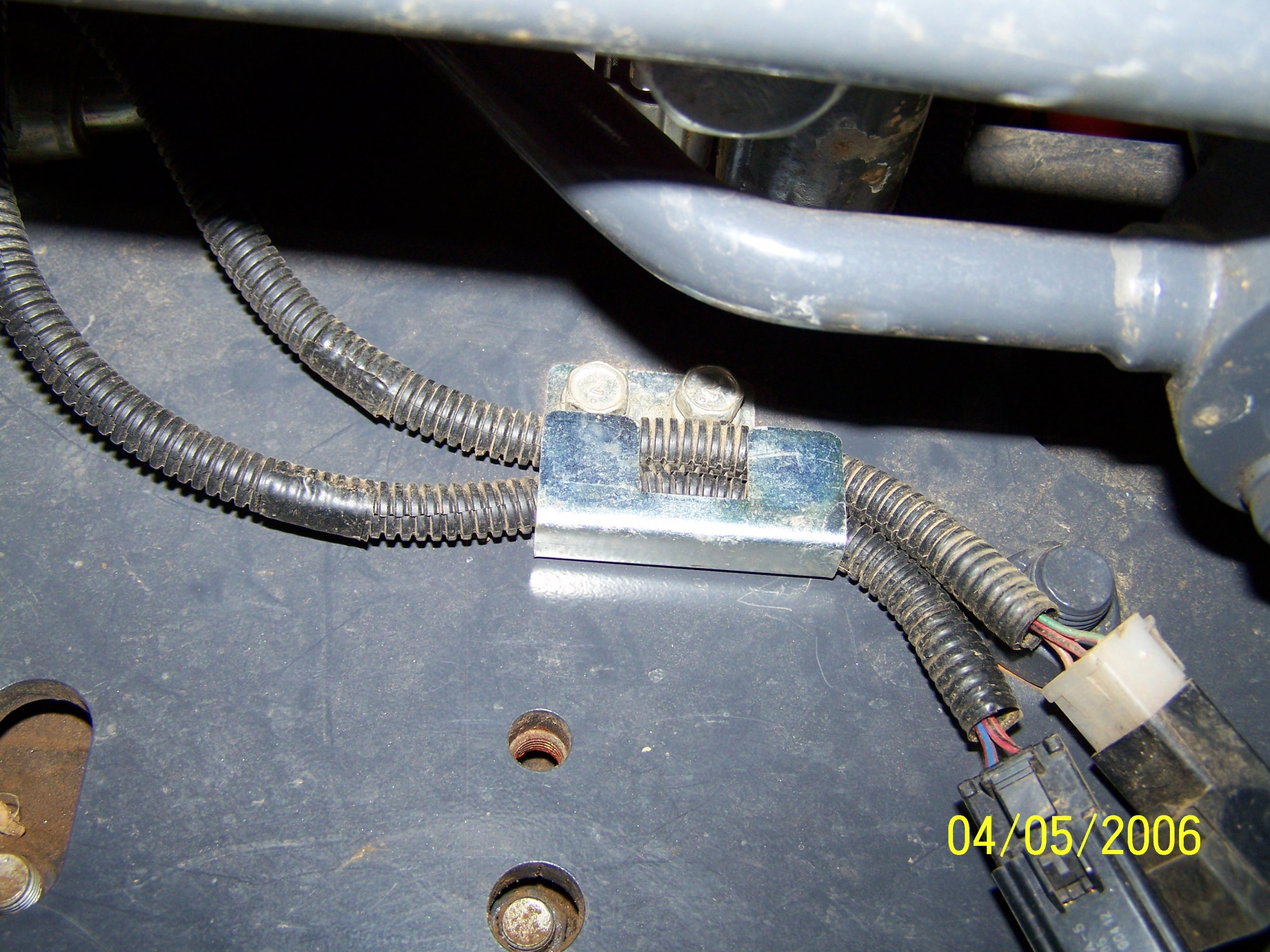

I was under my L47 and noticed two cable assemblies hanging down. Since they are capped I figure they didn't become unplugged and must be for some accessory that I don't have. There was a metal bracket nearby that was unused so I stuck the cables in it to keep them from hanging. I don't think the bracket is associated with the cables because it took some effort to get the cables in behind the clip.

Anyone know what these are for? they are located about amidships Right side.



[mikester]

Be more helpful to see the connector ends and where these wires are in relation to the machine. Looks like a 2 wire and 3 wire?

I have a 3-C connector on the outer frame lower RHS for my M59 front remotes. Joystick two button to solenoids.

Look at the wiring diagram in the WSM and use wire sizes and color codes to help you identify what's in the harness.



[Notforhire]

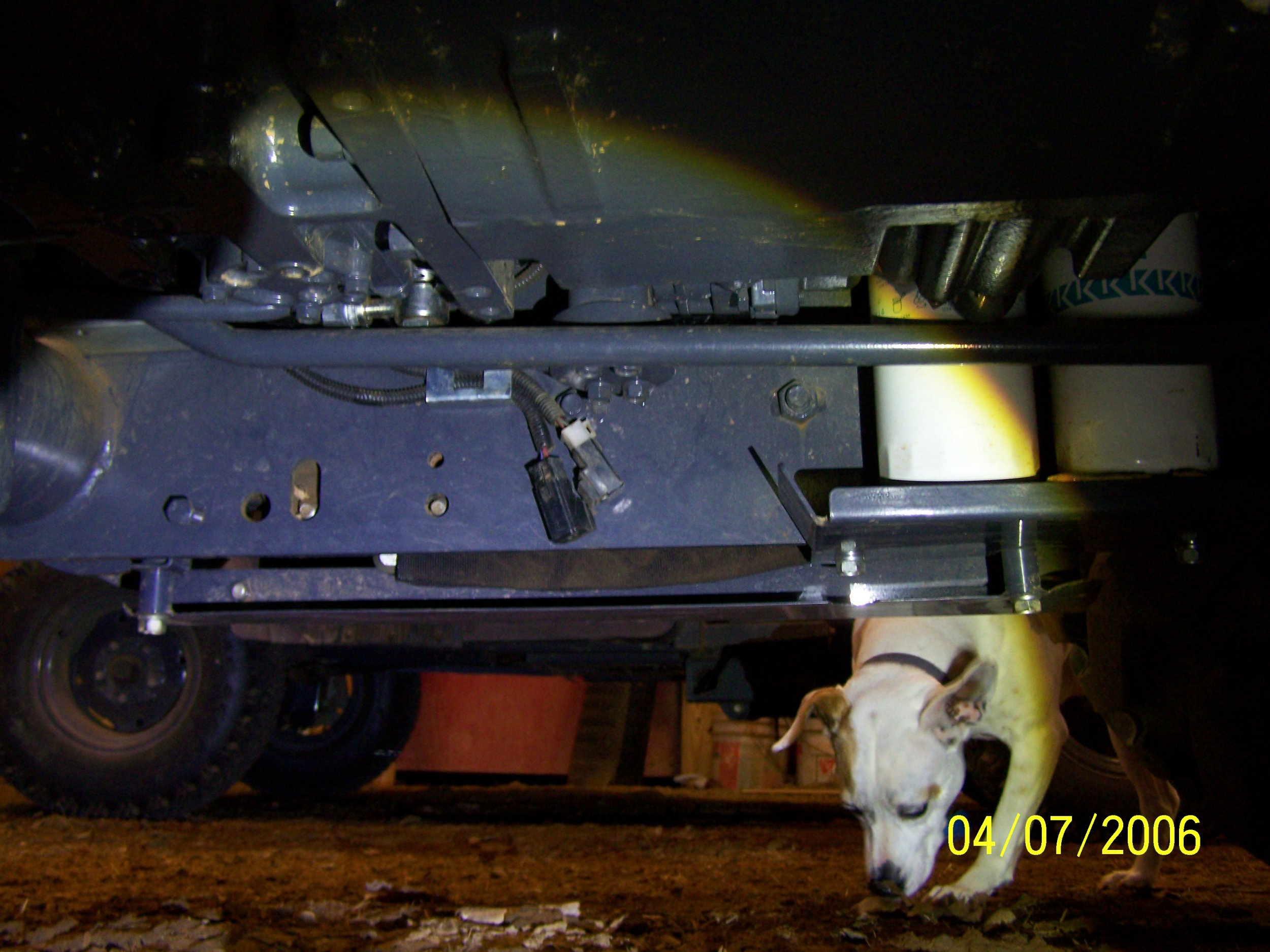

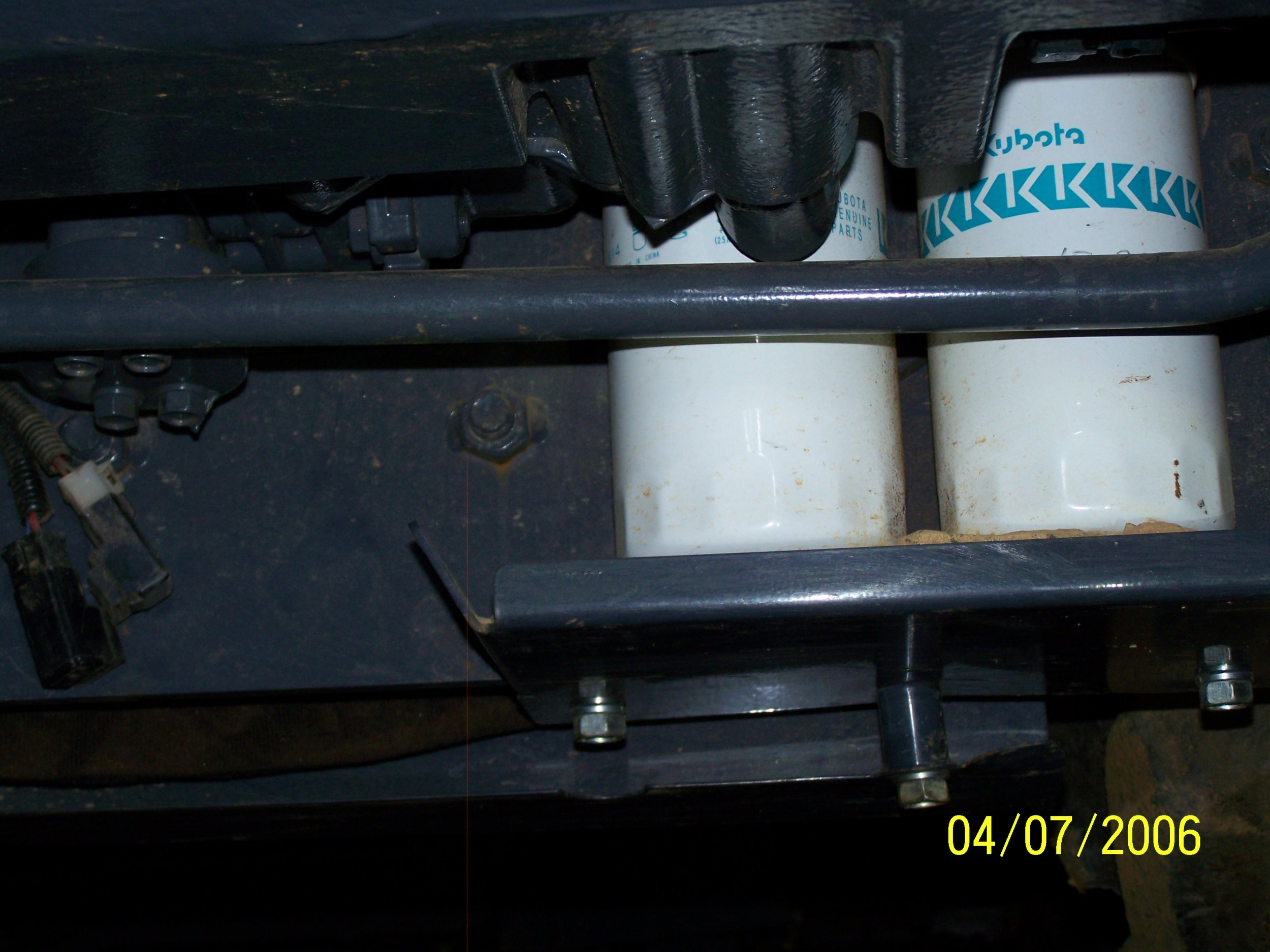

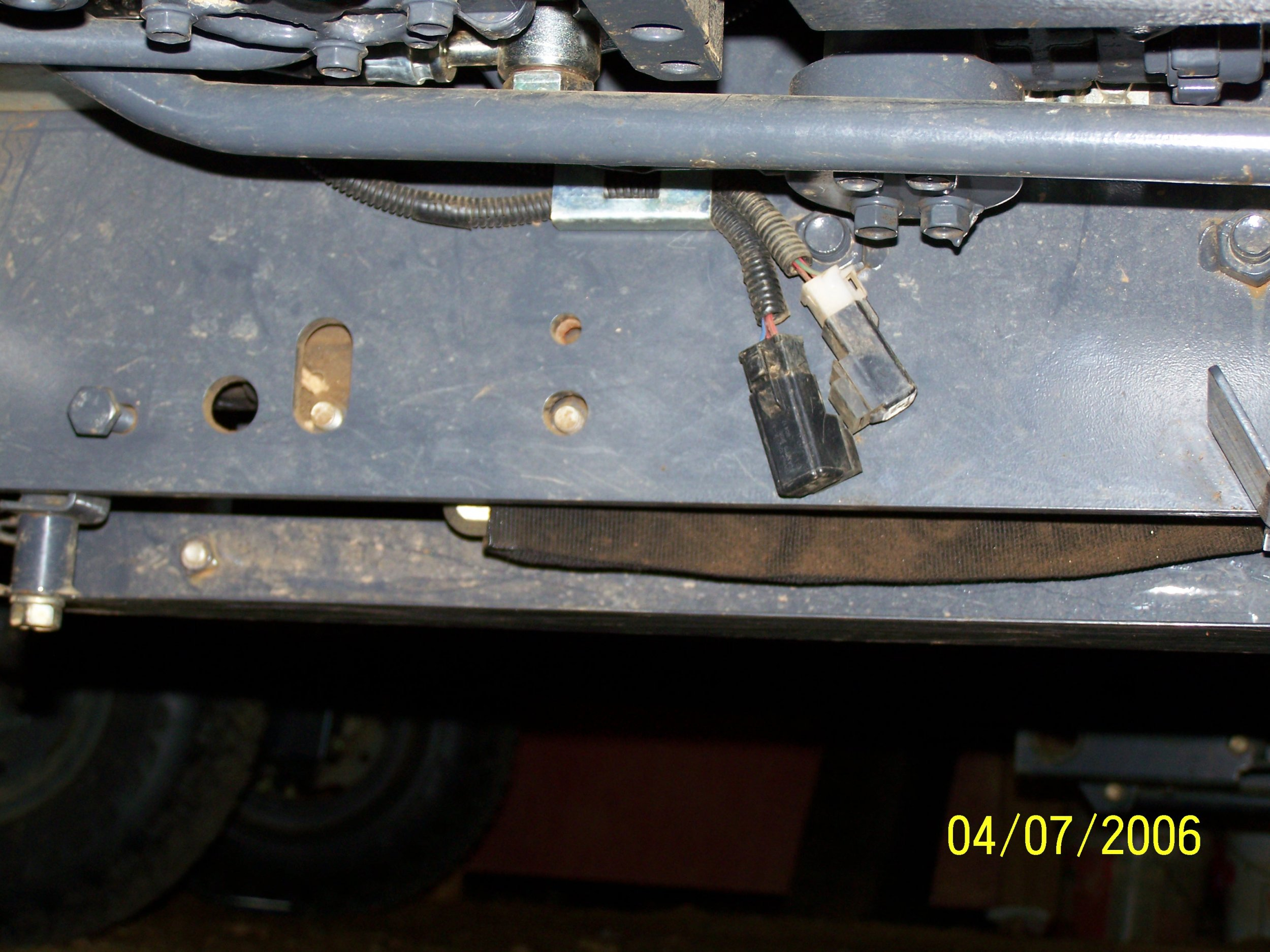

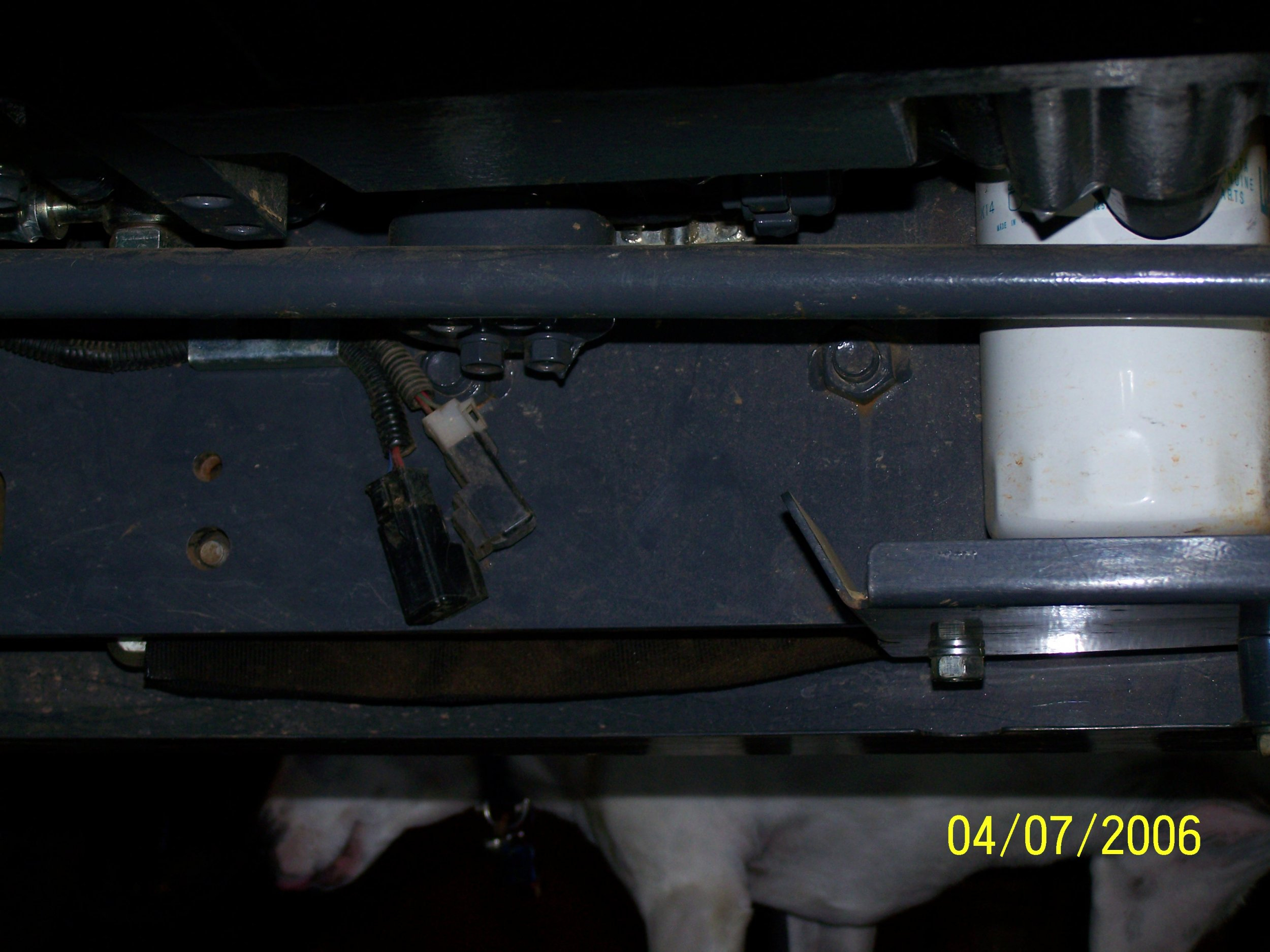

I took a few more photos from the left side of the machine. Now you can see the location a little better. They are located on the inside of the right subframe just forward of the trans filters.
I have a factory 3rd function for my grapple so the joystick wires should already be in use. I don't remember seeing these two cables when I first bought the machine. They may have been cut free when the dealer installed the 3rd function kit then just tucked up out of the way. I can't think of any accessories that would use these 5 wires.
I asked the dog since she is smarter than me and can fit under the tractor more easily

. She had nothing to offer.



[Peter 315]

They hook on to that metal bracket with the rubber slot on the plug. Mine has the same ones.



[Notforhire]

They hook on to that metal bracket with the rubber slot on the plug. Mine has the same ones.

Any idea what they are for?



[Peter 315]

No... I can look in the shop manual later.



[Notforhire]

No... I can look in the shop manual later.

Thank you, I'd appreciate that.
I looked, but couldn't find anything. Unfortunately I'm not very good at reading those diagrams.



[Peter 315]

looks like a resistor.. HaHa same here thats my guess.



[Notforhire]

Thank you.
What page in the WSM did you find that on?



[Peter 315]

Page 9-m7 I looked under my tractor and one looks like a relay.
