Allis Chalmers B, C, CA Wiring Diagrams

[ldkraemer]

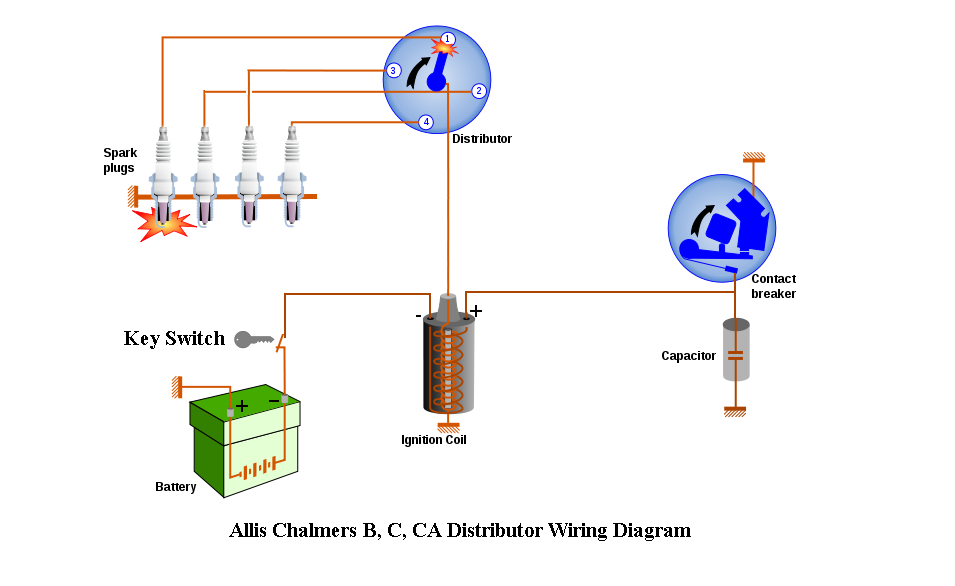

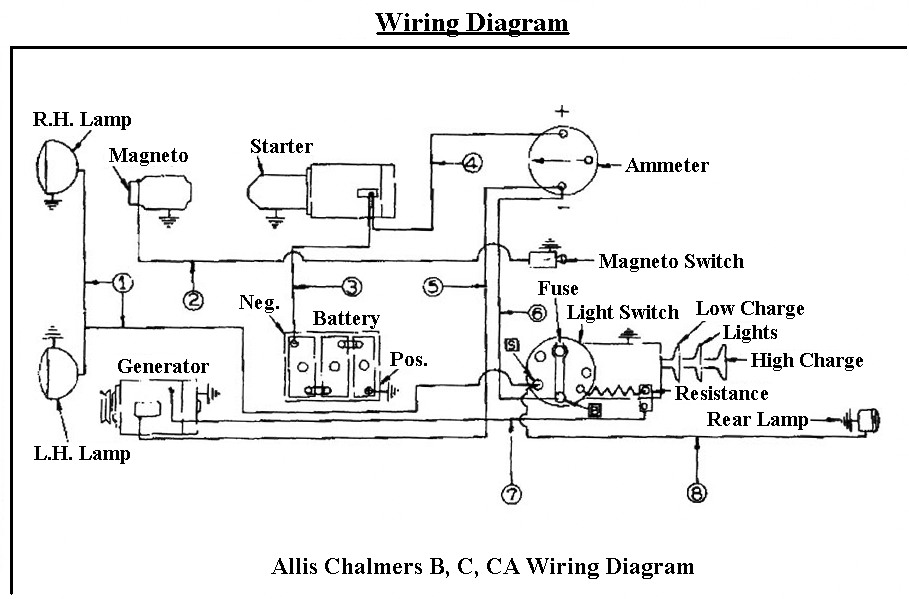

I scanned the Schematic from my Service manual and modified it to show
the proper wiring for a Distributor.

Make sure you verify the Positive Ground Wiring, and verify that the Coil
wiring has the PLUS (+) Terminal wire going to the Distributor.

Enjoy!

LK



[oronc]

Perfect,Been looking for dist. wrg, pic. THANKS.



[Soundguy]

have you checked the service manual? I'd be surprised if they aren't in there?

soundguy



[flusher]

Perfect,Been looking for dist. wrg, pic. THANKS.

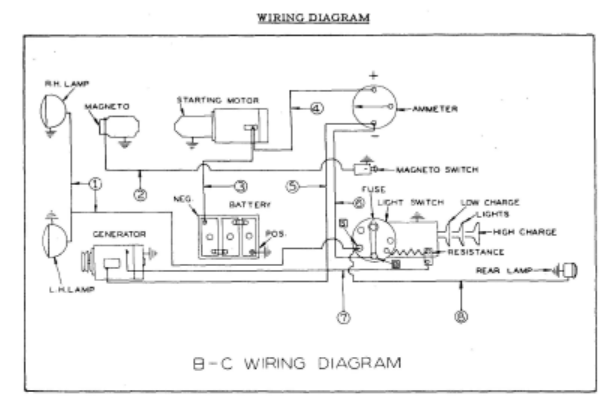

From the AC B&C service manual



The firing order is 1-2-4-3 (I assume cylinder #1 is the one at the front of the engine).

Good luck
